STTA5012TV2, STTA5012TV1 (STTAxxxx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

ST Microelectronics

Description

( DataSheet : www.DataSheet4U.com ) ® STTA2512P STTA5012TV1/2 TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM .
TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diodes.

📥 Download Datasheet

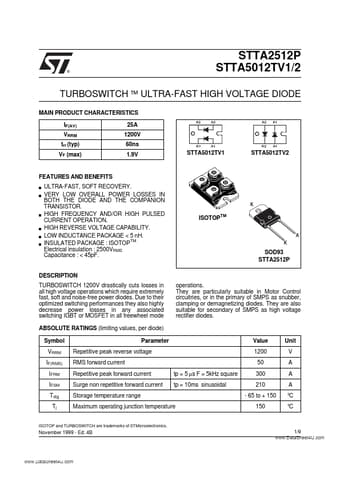

STTA5012TV2 Datasheet Preview — This datasheet PDF includes multiple part numbers: STTA5012TV2, STTA5012TV1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STTA5012TV2, STTA5012TV1
Manufacturer: STMicroelectronics ↗
File Size: 262.78 KB
Datasheet: STTA5012TV1_STMicroelectronics.pdf
Description: (STTAxxxx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE
Note: This datasheet PDF includes multiple part numbers: STTA5012TV2, STTA5012TV1.
Please refer to the document for exact specifications by model.

Features

* ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY AND/OR HIGH PULSED CURRENT OPERATION. HIGH REVERSE VOLTAGE CAPABILITY. LOW INDUCTANCE PACKAGE < 5 nH. INSULATED PACKAGE : ISOTOPTM Electrical insulation : 2500VRMS Capacitance : <

Applications

* (Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig. A : "FREEWHEEL" MOD
