STTH3012

ultrafast high voltage diode

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STTH3012WL DIODE STD 1200V 30A DO247 LL DigiKey 459 1200 units
$1.58

STTH3012 Datasheet (492.16 KB)

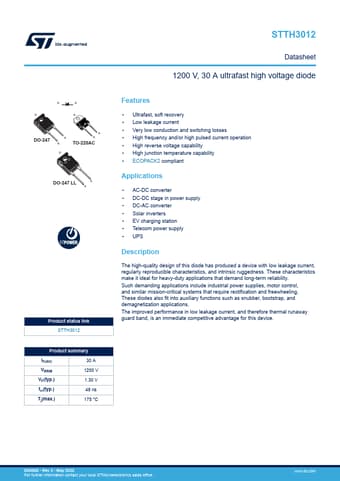

Preview of STTH3012 PDF Datasheet

Datasheet Details

Part number:

STTH3012

Manufacturer:

STMicroelectronics ↗

File Size:

492.16 KB

Description:

Ultrafast high voltage diode.
K A K K DO-247 A K A K TO-220AC K DO-247 LL A K Product status link STTH3012 Product summary IF(AV) 30 A VRRM 1200 V VF(typ.) 1.30 V.

STTH3012 Features

* Ultrafast, soft recovery

* Low leakage current

* Very low conduction and switching losses

* High frequency and/or high pulsed current operation

* High reverse voltage capability

* High junction temperature capability

* ECOPACK2 compliant Appl

STTH3012 General Description

The high-quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics, and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long-term reliability. Such demanding applications include industrial po.
