STTH30M06S - ultrafast high voltage diode

STMicroelectronics

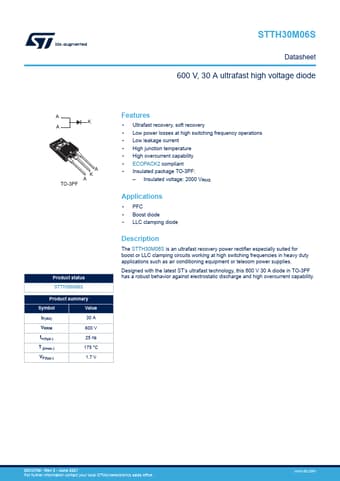

STTH30M06S Datasheet Preview — Preview of STTH30M06S PDF

Datasheet Details

Part number	STTH30M06S
Manufacturer	STMicroelectronics ↗
File Size	202.46 KB
Description	ultrafast high voltage diode
Datasheet	STTH30M06S-STMicroelectronics.pdf

STTH30M06S Product details

Description

The STTH30M06S is an ultrafast recovery power rectifier especially suited for boost or LLC clamping circuits working at high switching frequencies in heavy duty applications such as air conditioning equipment or telecom power supplies.

Features

Ultrafast recovery, soft recovery.
Low power losses at high switching frequency operations.
Low leakage current.
High junction temperature.
High overcurrent capability.
ECOPACK2 compliant.
Insulated package TO-3PF:.
Insulated voltage: 2000 VRMS.
