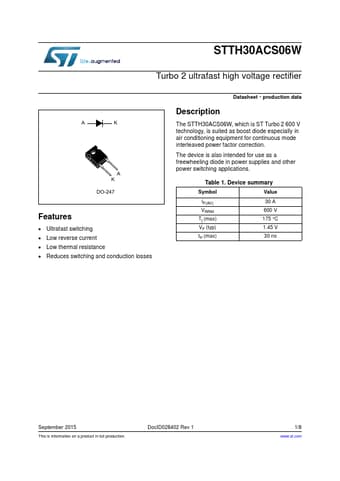

STTH30ACS06W Datasheet, Rectifier, STMicroelectronics

STTH30ACS06W Features

• Rectifier
• Ultrafast switching
• Low reverse current
• Low thermal resistance
• Reduces switching and conduction losses Datasheet - production data Description

PDF File Details

Part number:

STTH30ACS06W

Manufacturer:

STMicroelectronics ↗

File Size:

99.67kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH30ACS06W, which is ST Turbo 2 600 V technology, is suited as boost diode especially in air conditioning equipment for continu

STTH30ACS06W Application

• Applications Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) trr (max) 30 A 600 V 175 °C 1.45 V 30 ns September 2015 This
