STTH30RQ06 Turbo 2 ultrafast high voltage rectifier

📥 Download Datasheet Datasheet Preview Page 1

Description

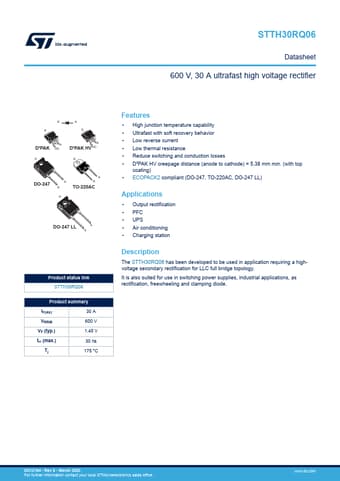

STTH30RQ06 Datasheet 600 V, 30 A ultrafast high voltage rectifier K K A K KA D²PAK NC AA D²PAK HV NC K K DO-247 A K A K TO-220AC K DO-247 L.
The STTH30RQ06 has been developed to be used in application requiring a highvoltage secondary rectification for LLC full bridge topology.

📥 Download Datasheet

Preview of STTH30RQ06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* High junction temperature capability
* Ultrafast with soft recovery behavior
* Low reverse current
* Low thermal resistance
* Reduce switching and conduction losses
* D²PAK HV creepage distance (anode to cathode) = 5.38 mm min. (with top coating)

Applications

* Output rectification
* PFC
* UPS
* Air conditioning
