STTH30R06C, STTH30R06CW Turbo 2 ultrafast high voltage rectifier

ST Microelectronics

Description

STTH30R06C Turbo 2 ultrafast high voltage rectifier Datasheet - production data A1 K A2 TO-247 A2 K A1 .
This device using ST Turbo 2 600 V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching condi.

📥 Download Datasheet

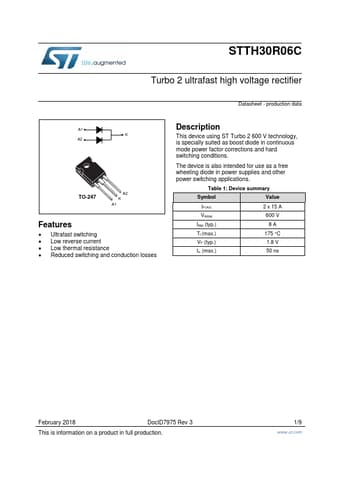

STTH30R06C Datasheet Preview — This datasheet PDF includes multiple part numbers: STTH30R06C, STTH30R06CW. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STTH30R06C, STTH30R06CW
Manufacturer: STMicroelectronics ↗
File Size: 358.38 KB
Datasheet: STTH30R06CW_STMicroelectronics.pdf
Description: Turbo 2 ultrafast high voltage rectifier
Note: This datasheet PDF includes multiple part numbers: STTH30R06C, STTH30R06CW.
Please refer to the document for exact specifications by model.

Features

* Ultrafast switching
* Low reverse current
* Low thermal resistance

Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM IRM (typ. ) Tj (max. ) VF (typ. ) trr (max. ) 2 x 15 A 600 V 8A 175 °C 1.8 V 50 ns February 2018 DocID7975 Rev 3 This is information on a product in full production. 1/9 www. st. com Characteristics STTH30R06C 1 Characteristics Symbol Table
