STTH30R06CW Turbo 2 ultrafast high voltage rectifier

📥 Download Datasheet Datasheet Preview Page 1

Description

STTH30R06C Turbo 2 ultrafast high voltage rectifier Datasheet - production data A1 K A2 TO-247 A2 K A1 .
This device using ST Turbo 2 600 V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching condi.

📥 Download Datasheet

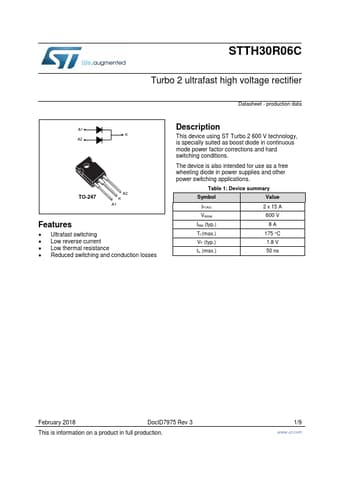

Preview of STTH30R06CW PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Ultrafast switching
* Low reverse current
* Low thermal resistance

Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM IRM (typ. ) Tj (max. ) VF (typ. ) trr (max. ) 2 x 15 A 600 V 8A 175 °C 1.8 V 50 ns February 2018 DocID7975 Rev 3 This is information on a product in full production. 1/9 www. st. com Characteristics STTH30R06C 1 Characteristics Symbol Table
