STTH30R06 - Turbo 2 ultrafast high voltage rectifier

ST Microelectronics

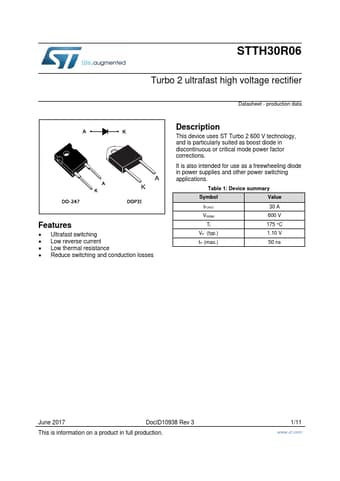

STTH30R06 Datasheet Preview — Preview of STTH30R06 PDF

Datasheet Details

Part number	STTH30R06
Manufacturer	STMicroelectronics ↗
File Size	286.38 KB
Description	Turbo 2 ultrafast high voltage rectifier
Datasheet	STTH30R06_STMicroelectronics.pdf

STTH30R06 Product details

Description

The STTH30R06, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial applications, as rectification and discontinuous mode PFC boost diode.

Features

30 A 600 V 175°C 1.10 V 50 ns K A K A TO-220AC STTH30R06D DO-247 STTH30R06W Ultrafast switching Low reverse current Low thermal resistance Reduces switching & conduction losses A K A K.
