STTH30L06

600V ultrafast rectifier

STTH30L06 Features

* Ultrafast switching

* Low reverse current

* Low thermal resistance

* Reduces switching and conduction losses Applications

* Telecom power supply

* OBC

* Industrial equipments

* Switching diode Description The STTH30L06, which is using

STTH30L06 General Description

The STTH30L06, which is using ST Turbo 2 600 V technology, is specially suited for use in switching power supplies, and industrial applications, as rectification and discontinuous mode PFC boost diode. Product status STTH30L06 Product summary IF(AV) 30 A VRRM 600 V Tj(max.) 175 °C VF(typ.) .

STTH30L06 Datasheet (359.11 KB)

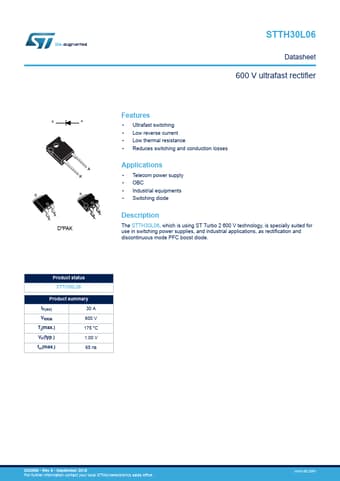

Preview of STTH30L06 PDF

Datasheet Details

Part number:

STTH30L06

Manufacturer:

STMicroelectronics ↗

File Size:

359.11 KB

Description:

600v ultrafast rectifier.
