STV0056A - SATELLITE SOUND AND VIDEO PROCESSORS

The STV0056A BICMOS integrated circuit realizes all the necessary signal processing from the tuner to the Audio/Video input and output connectors regardless the satellite system.

September 1996 .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

SOUND TWO INDEPENDENT SOUND DEMODULATORS PLL DEMODULATION WITH 5-10MHz

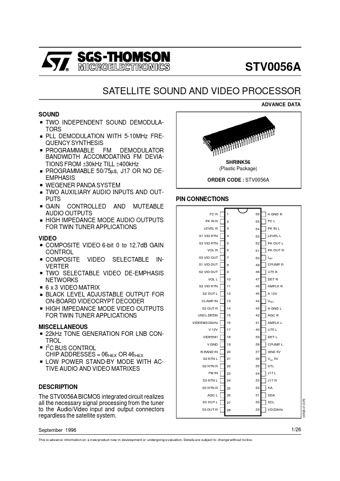

STV0056A SATELLITE SOUND AND VIDEO PROCESSOR ADVANCE DATA VIDEO COMPOSITE VIDEO 6-bit 0 to 12.7dB GAIN CONTROL COMPOSITE VIDEO SELECTABLE INVERTER TWO SELECTABLE VIDEO DE-EMPHASIS NETWORKS 6 x 3 VIDEO MATRIX BLACK LEVEL ADJUSTABLE OUTPUT FOR ON-BOARD VIDEOCRYPT DECODER HIGH IMPEDANCE MODE VIDEO OUTPUTS FOR TWIN TUNER APPLICATIONS MISCELLANEOUS 22kHz TONE GENERATION FOR LNB CONTROL I2C BUS CONTROL CHIP ADDRESSES = 06HEX OR 46HEX LOW POWER STAND-BY MODE WITH ACTIVE AUDIO AND VIDEO MATRIXES DESCRI
