STV0116 Datasheet - ST Microelectronics

STV0116 Pal / Ntsc Digital Encoder

The STV0116converts the digital output of a Video MPEG decoder into a standard analog base band NTSC/PAL signal, with a modulated subcarrier. Both composite and SVHS format video signals are simultaneously delivered to 3 analog outputs. The STV0116 includes additionnally three analog RGB outputs to .

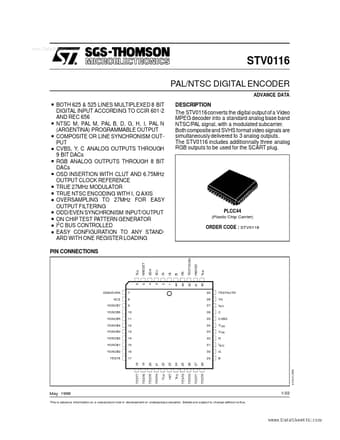

www.DataSheet4U.com STV0116 PAL/NTSC DIGITAL ENCODER . . . . . . . . . . . . . ADVANCE DATA BOTH 625 & 525 LINES MULTIPLEXED 8 BIT DIGITAL INPUT ACCORDING TO CCIR 601-2 AND REC 656 NTSC M, PAL M, PAL B, D, G, H, I, PAL N (ARGENTINA) PROGRAMMABLE OUTPUT COMPOSITE OR LINE SYNCHRONISM OUTPUT CVBS, Y, C ANALOG OUTPUTS THROUGH 9 BIT DACs RGB ANALOG OUTPUTS THROUGH 8 BIT DACs OSD INSERTION WITH CLUT AND 6.75MHz OUTPUT CLOCK REFERENCE TRUE 27MHz MODULATOR TRUE NTSC ENCODING WITH I, Q AXIS OVERSAMPL.
