STV-2520 - CRYSTAL OSCILLATOR

Datasheet Summary

Features

  • Ultra thin / Dimensions(2.5 X 2.0 X 0.8) Seam sealed Low phase noise / Low power consumption High Stability ±0.5ppm / -40℃～+85℃ Specifications Model Frequency range Nominal frequency(MHz) Tolerance at 25℃ Frequency stability Temperature (Ref. to 25℃) Supply voltage change Load change Aging (at 25℃) Storage temperature range Power supply voltage (Vcc) Current consumption Output External control function Load (ZL) Voltage Waveform Frequency tuning range External control voltage Input.

📥 Download Datasheet

Datasheet preview – STV-2520

Datasheet Details

Part number STV-2520
Manufacturer SIWARD
File Size 165.98 KB
Description CRYSTAL OSCILLATOR
Datasheet download datasheet STV-2520 Datasheet
Additional preview pages of the STV-2520 datasheet.

📁 Similar Datasheet

  • STV0042A - SATELLITE SOUND AND VIDEO PROCESSORS (ST Microelectronics)
  • STV0056A - SATELLITE SOUND AND VIDEO PROCESSORS (ST Microelectronics)
  • STV0056AF - SATELLITE SOUND AND VIDEO PROCESSORS (ST Microelectronics)
  • STV0116 - Pal / Ntsc Digital Encoder (ST Microelectronics)
  • STV0117 - Pal / Ntsc Digital Encoder (ST Microelectronics)
  • STV0118 - PAL/NTSC HIGH PERFORMANCE DIGITAL ENCODER (ST Microelectronics)
  • STV0119A - PAL/NTSC HIGH PERFORMANCE DIGITAL ENCODER (ST Microelectronics)
  • STV0190 - DUAL 40 MSPS 6-BIT ANALOG TO DIGITAL CONVERTER (ST Microelectronics)
  • STV0196B - QPSK/BPSK DEMODULATOR AND FEC IC (ST Microelectronics)
  • STV0288 - DVB-S and DIRECTV QPSK receiver (ST Microelectronics)
Other Datasheets by SIWARD

Full PDF Text Transcription

Click to expand full text

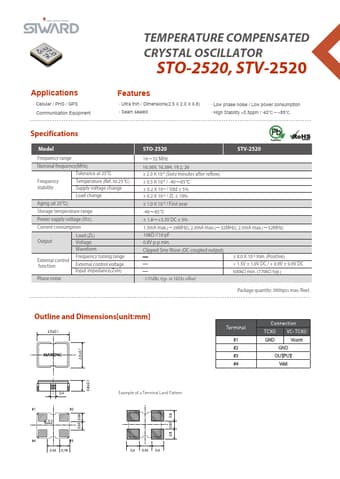

TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR STO-2520, STV-2520 Applications Cellular / PHS / GPS Communication Equipment Features Ultra thin / Dimensions(2.5 X 2.0 X 0.8) Seam sealed Low phase noise / Low power consumption High Stability ±0.5ppm / -40℃～+85℃ Specifications Model Frequency range Nominal frequency(MHz) Tolerance at 25℃ Frequency stability Temperature (Ref. to 25℃) Supply voltage change Load change Aging (at 25℃) Storage temperature range Power supply voltage (Vcc) Current consumption Output External control function Load (ZL) Voltage Waveform Frequency tuning range External control voltage Input impedance(Zvin) Phase noise STO-2520 STV-2520 16～52 MHz 16.369, 16.384, 19.2, 26 ± 2.0Ｘ10-6 (Sixty minutes after reflow) ± 0.5Ｘ10-6 / -40～85℃ ± 0.
