STV0190 Datasheet, Converter, ST Microelectronics

PDF File Details

Part number:

STV0190

Manufacturer:

STMicroelectronics ↗

File Size:

128.49kb

Download:

📄 Datasheet

Description:

Dual 40 msps 6-bit analog to digital converter. The STV0190 is a dual 40 MSPS 6-bit Analog to Digital converter. It is dedicated to QPSK demodulation in Satellite receiver. The Flas

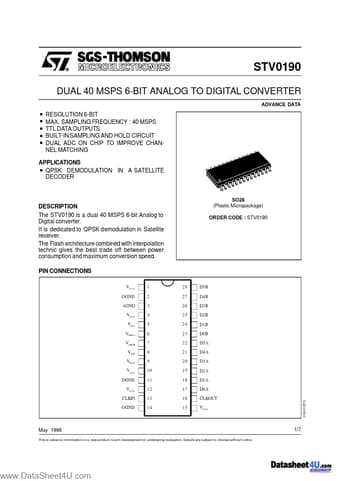

Datasheet Preview: STV0190 📥 Download PDF (128.49kb)
Page 2 of STV0190 Page 3 of STV0190

STV0190 Application

  • Applications QPSK DEMODULATION IN A SATELLITE DECODER . . . . . . ADVANCE DATA RESOLUTION 6-BIT MAX. SAMPLING FREQUENCY : 40 MSPS TTL DATA OUTPUT
