STV0117 Pal / Ntsc Digital Encoder

The STV0117is a digital video device implemented in pure CMOS technology for multimedia, digital TV and computer applications. The STV0117converts the digital output of a Video MPEG Decoder into a standard analog baseband NTSC/PAL signal with color subcarrier modulation. The STV0117 can handle inter.
www.DataSheet4U.com STV0117 PAL/NTSC DIGITAL ENCODER . . . . . . . . . . . . . . . . . . . . . NTSC-M, PAL-M, PAL-B, D, G, H, I, PAL-N EASILY PROGRAMMABLE VIDEO OUTPUTS U/V AND Q/I MATRIXING FOR RESPECTIVELY PAL AND NTSC ENCODING DIGITAL FRAME SYNC INPUT/OUTPUT (ODDEVEN) DIGITAL FRAME SYNC EXTRACTION FROM MULTIPLEXED 8-BIT INPUT PORT DIGITAL FIELD SYNC OUTPUT (FSYNC) DIGITAL COMPOSITE SYNC OUTPUT (VCS/HSYNC = VCS) DIGITAL HORIZONTAL SYNC INPUT/OUTPUT (VCS/HSYNC = HSYNC) 3 SLAVE OR 2 MASTER OP.

STV0117_STMicroelectronics.pdf

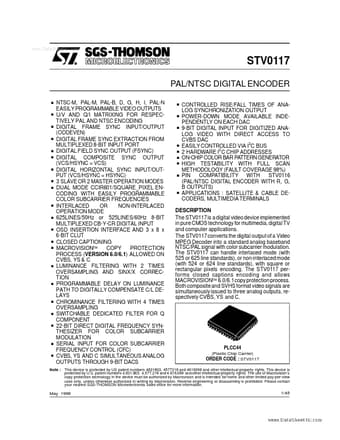

Preview of STV0117 PDF
