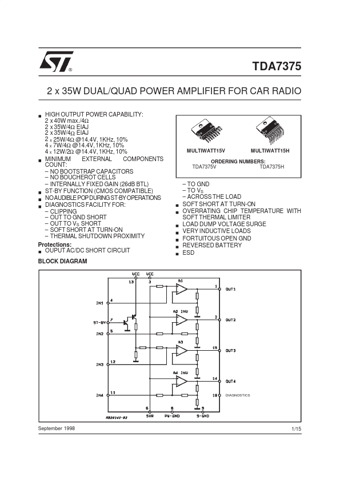

TDA7375 2 x 35W DUAL/QUAD POWER AMPLIFIER

The TDA7375 is a new technology class AB car radio amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guaranABSOLUTE MAXIMUM RATINGS Symbol Vop VS Vpeak IO IO Ptot Tstg, Tj Ope.

® TDA7375 2 x 35W DUAL/QUAD POWER AMPLIFIER FOR CAR RADIO HIGH OUTPUT POWER CAPABILITY: 2 x 40W max./4Ω 2 x 35W/4Ω EIAJ 2 x 35W/4Ω EIAJ 2 x 25W/4Ω @14.4V, 1KHz, 10% 4 x 7W/4Ω @14.4V, 1KHz, 10% 4 x 12W/2Ω @14.4V, 1KHz, 10% MINIMUM EXTERNAL COMPONENTS COUNT: NO BOOTSTRAP CAPACITORS NO BOUCHEROT CELLS INTERNALLY FIXED GAIN (26dB BTL) ST-BY FUNCTION (CMOS COMPATIBLE) NOAUDIBLE POPDURING ST-BYOPERATIONS DIAGNOSTICS FACILITY FOR: CLIPPING OUT TO GND .

TDA7375 Features

* /DC short circuit to GND, to VS, acros
