TDA7375A 2 x 37W DUAL/QUAD POWER AMPLIFIER

The TDA7375A is a new technology class AB car radio amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guaranABSOLUTE MAXIMUM RATINGS Symbol Vop VS Vpeak IO IO Ptot Tstg, Tj Op.

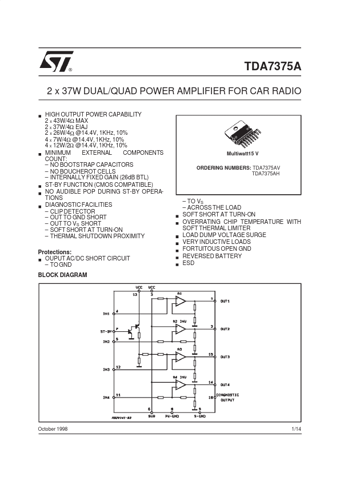

® TDA7375A 2 x 37W DUAL/QUAD POWER AMPLIFIER FOR CAR RADIO HIGH OUTPUT POWER CAPABILITY 2 x 43W/4Ω MAX 2 x 37W/4Ω EIAJ 2 x 26W/4Ω @14.4V, 1KHz, 10% 4 x 7W/4Ω @14.4V, 1KHz, 10% 4 x 12W/2Ω @14.4V, 1KHz, 10% MINIMUM EXTERNAL COMPONENTS COUNT: NO BOOTSTRAP CAPACITORS NO BOUCHEROT CELLS INTERNALLY FIXED GAIN (26dB BTL) ST-BY FUNCTION (CMOS COMPATIBLE) NO AUDIBLE POP DURING ST-BY OPERATIONS DIAGNOSTIC FACILITIES CLIP DETECTOR OUT TO GND SHORT

TDA7375A Features

* on temperature to the shutdown threshold. Typically current sinking
