TDA8132 Datasheet - ST Microelectronics

5.1V+ 12V DISABLE VOLTAGE REGULATOR

TDA8132 General Description

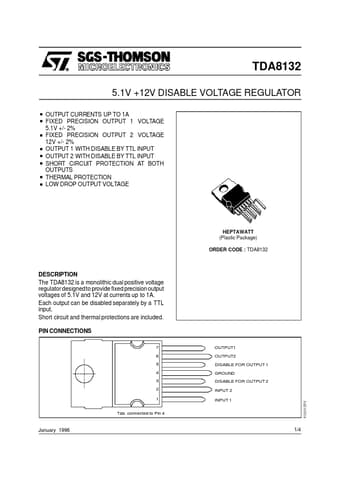

The TDA8132 is a monolithic dual positive voltage regulator designedto provide fixed precision output voltages of 5.1V and 12V at currents up to 1A. Each output can be disabled separately by a TTL input. Short circuit and thermal protections are included. PIN CONNECTIONS 7 6 5 4 3 2 1 Tab. connected.

TDA8132 Datasheet (43.02 KB)

TDA8132 Datasheet Preview — Preview of TDA8132 PDF

Datasheet Details

Part number:

TDA8132

Manufacturer:

STMicroelectronics ↗

File Size:

43.02 KB

Description:

5.1v+ 12v disable voltage regulator.
TDA8132 5.1V +12V DISABLE VOLTAGE REGULATOR . . . . . . . . OUTPUT CURRENTS UP TO 1A FIXED PRECISION OUTPUT 1 VOLTAGE 5.1V +/- 2% FIXED PRECISION OU.
