5V + ADJUSTABLE VOLTAGE REGULATOR

TDA8135 General Description

The TDA8135 is a monolithic dual positive voltage regulator designedto provide fixed precision output voltages, 5V + adjustable outputs at currents up to 600mA. Output 2 can be disabled by a TTL input. Both output currents are limited by an internal short circuit protection. HEPTAWATT (Plastic Pack.

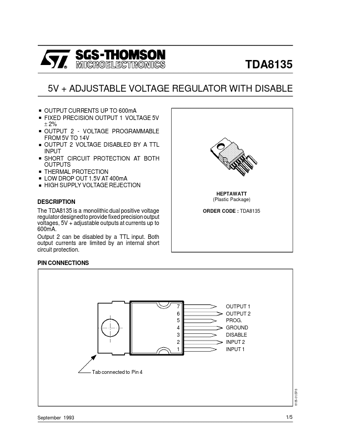

TDA8135 Datasheet (151.71 KB)

TDA8135 Datasheet Preview — Preview of TDA8135 PDF

Datasheet Details

Part number:

TDA8135

Manufacturer:

STMicroelectronics ↗

File Size:

151.71 KB

Description:

5v + adjustable voltage regulator.
TDA8135 5V + ADJUSTABLE VOLTAGE REGULATOR WITH DISABLE . OUTPUT CURRENTS UP TO 600mA . FIXED PRECISION OUTPUT 1 VOLTAGE 5V ± 2% . OUTPUT 2 - VOLTAGE.
