TDA8137

DUAL 5.1V REGULATOR WITH DISABLE AND RESET

ST Microelectronics

TDA8137 General Description

The TDA8137 is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5.1V at currents up to 1A. An internal reset circuit generates a reset pulse when the output 1 decreases below the regulated voltage value. Output 2 can be disabled by TTL input. Short .

TDA8137 Datasheet (81.14 KB)

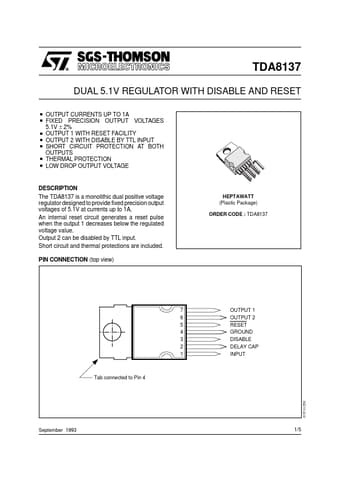

TDA8137 Datasheet Preview — Preview of TDA8137 PDF

Datasheet Details

Part number:

TDA8137

Manufacturer:

STMicroelectronics ↗

File Size:

81.14 KB

Description:

Dual 5.1v regulator with disable and reset.
TDA8137 DUAL 5.1V REGULATOR WITH DISABLE AND RESET . . . . . . . OUTPUT CURRENTS UP TO 1A FIXED PRECISION OUTPUT VOLTAGES 5.1V ± 2% OUTPUT 1 WITH RE.
