TDA8138

5.1V+ 12V REGULATOR WITH DISABLE AND RESET

ST Microelectronics

TDA8138 General Description

The TDA8138 is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5.1V and 12V at currents up to 1A. An internal reset circuit generates a reset pulse when the output 1 decrease below the regulated voltage value (for TDA8138 and TDA8138B). Output 2 ca.

TDA8138 Datasheet (103.08 KB)

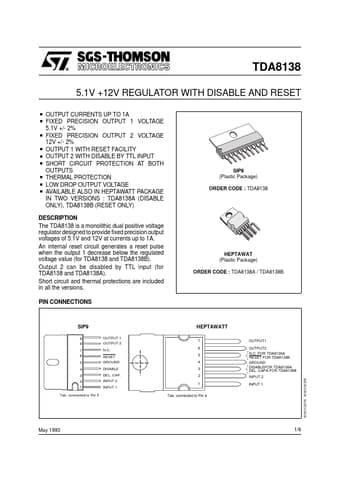

TDA8138 Datasheet Preview — Preview of TDA8138 PDF

Datasheet Details

Part number:

TDA8138

Manufacturer:

STMicroelectronics ↗

File Size:

103.08 KB

Description:

5.1v+ 12v regulator with disable and reset.
TDA8138 5.1V +12V REGULATOR WITH DISABLE AND RESET . . . . . . . . . OUTPUT CURRENTS UP TO 1A FIXED PRECISION OUTPUT 1 VOLTAGE 5.1V +/- 2% FIXED PRE.
