GD150MLX65L3S IGBT

STARPOWER

Description

GD150MLX65L3S STARPOWER SEMICONDUCTOR GD150MLX65L3S 650V/150A 3-level in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

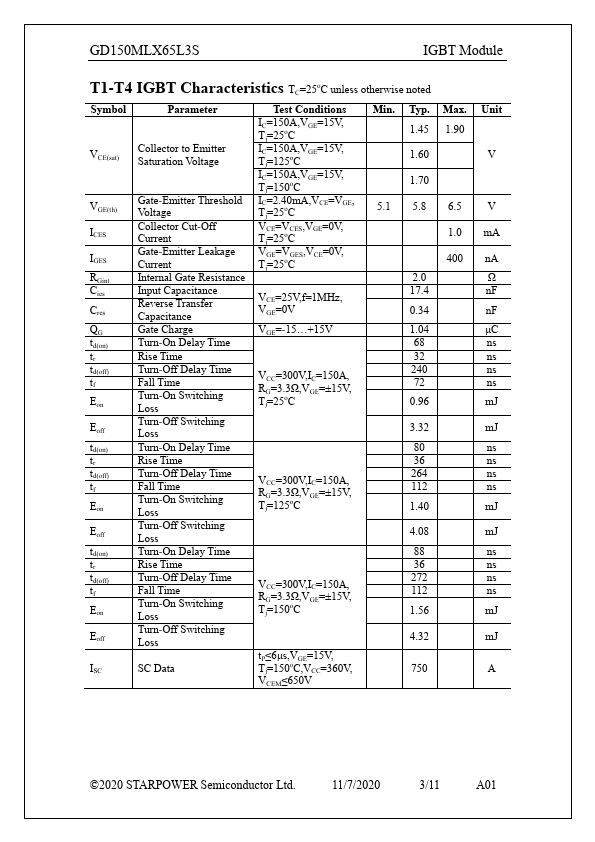

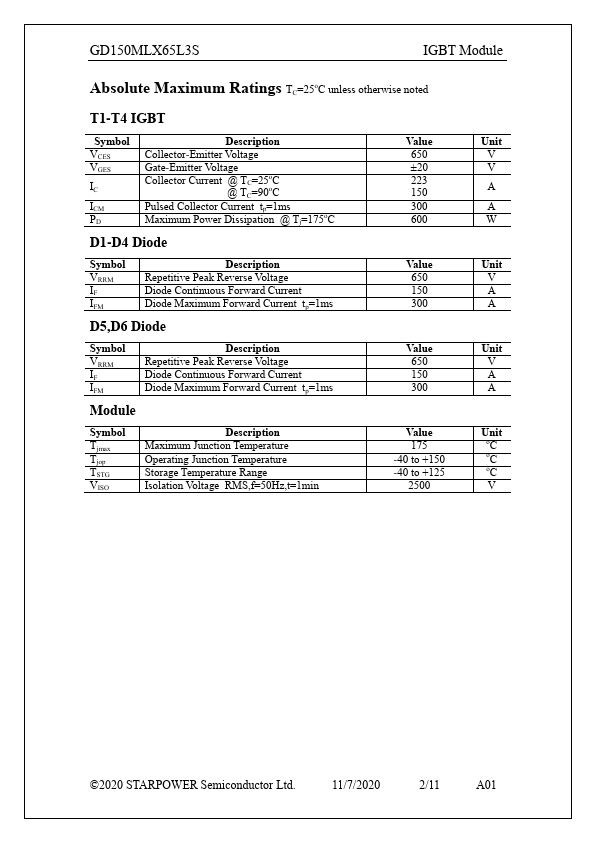

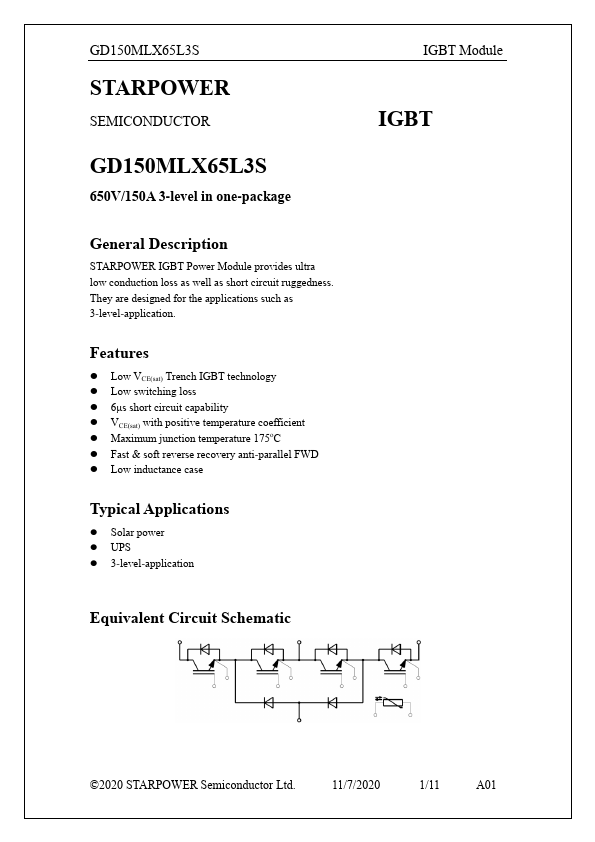

GD150MLX65L3S Datasheet Preview — Preview of GD150MLX65L3S PDF

Datasheet Specifications

Part number: GD150MLX65L3S
Manufacturer: STARPOWER
File Size: 577.00 KB
Datasheet: GD150MLX65L3S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching loss
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Fast & soft reverse recovery anti-parallel FWD
