GD15PHX120L2S - IGBT

STARPOWER

📥 Download Datasheet

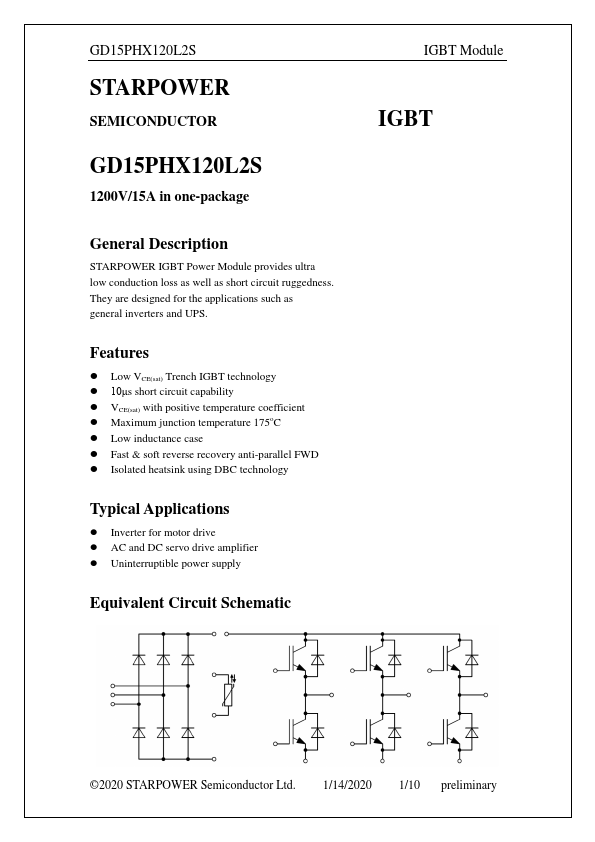

GD15PHX120L2S Datasheet Preview — Preview of GD15PHX120L2S PDF

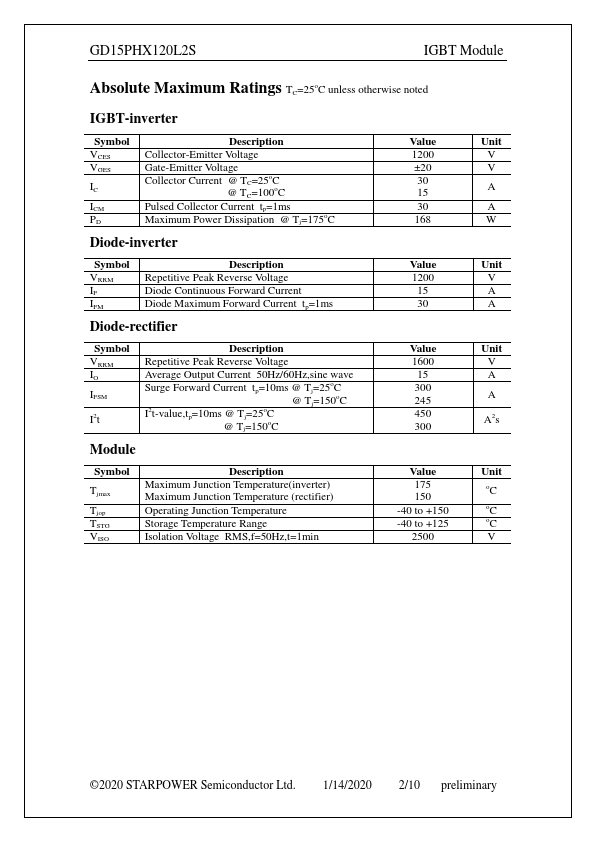

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GD15PHX120L2S
Manufacturer	STARPOWER
File Size	255.83 KB
Description	IGBT
Datasheet	GD15PHX120L2S-STARPOWER.pdf

GD15PHX120L2S Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
