GD20FSX65L2S IGBT

STARPOWER

Description

GD20FSX65L2S STARPOWER SEMICONDUCTOR GD20FSX65L2S 650V/20A 6 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

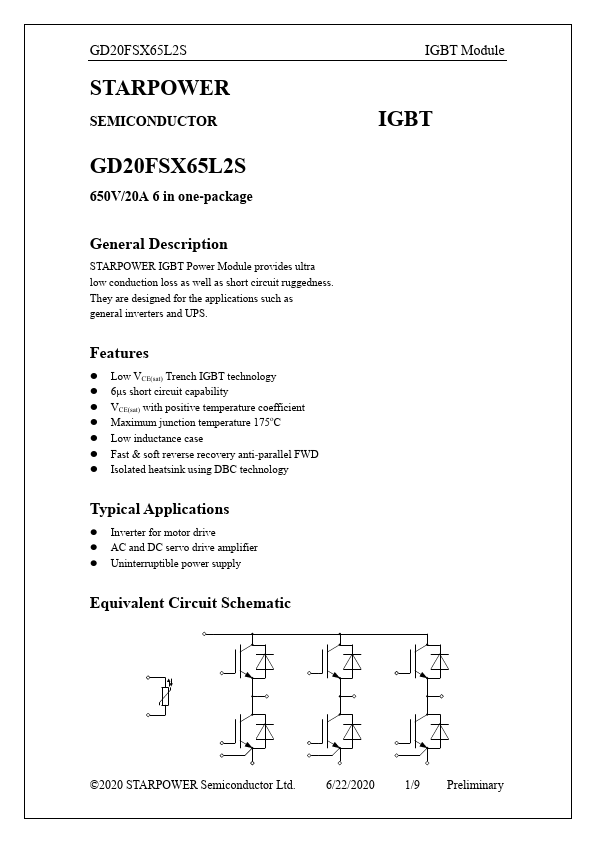

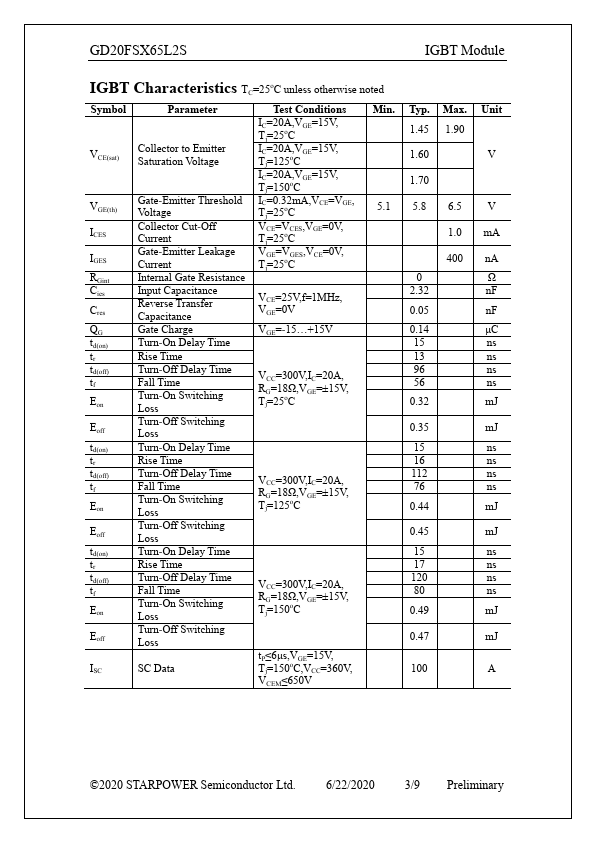

GD20FSX65L2S Datasheet Preview — Preview of GD20FSX65L2S PDF

Datasheet Specifications

Part number: GD20FSX65L2S
Manufacturer: STARPOWER
File Size: 467.33 KB
Datasheet: GD20FSX65L2S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology Typic
