GD20FSX65L4SN IGBT

STARPOWER

Description

GD20FSX65L4SN STARPOWER SEMICONDUCTOR GD20FSX65L4SN 650V/20A 6 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

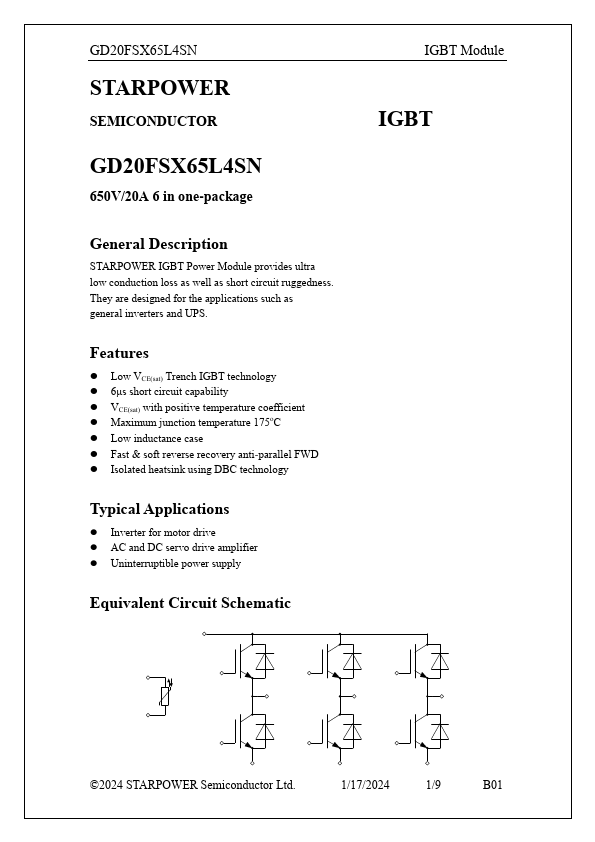

GD20FSX65L4SN Datasheet Preview — Preview of GD20FSX65L4SN PDF

Datasheet Specifications

Part number: GD20FSX65L4SN
Manufacturer: STARPOWER
File Size: 442.54 KB
Datasheet: GD20FSX65L4SN-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology Typic
