GD25PJA120L3S_B20 - IGBT

GD25PJA120L3S_B20 Description

GD25PJA120L3S_B20 STARPOWER SEMICONDUCTOR GD25PJA120L3S_B20 1200V/25A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

GD25PJA120L3S_B20 Features

* Low VCE(sat) Trench IGBT technology
* 8μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology Typic

📥 Download Datasheet

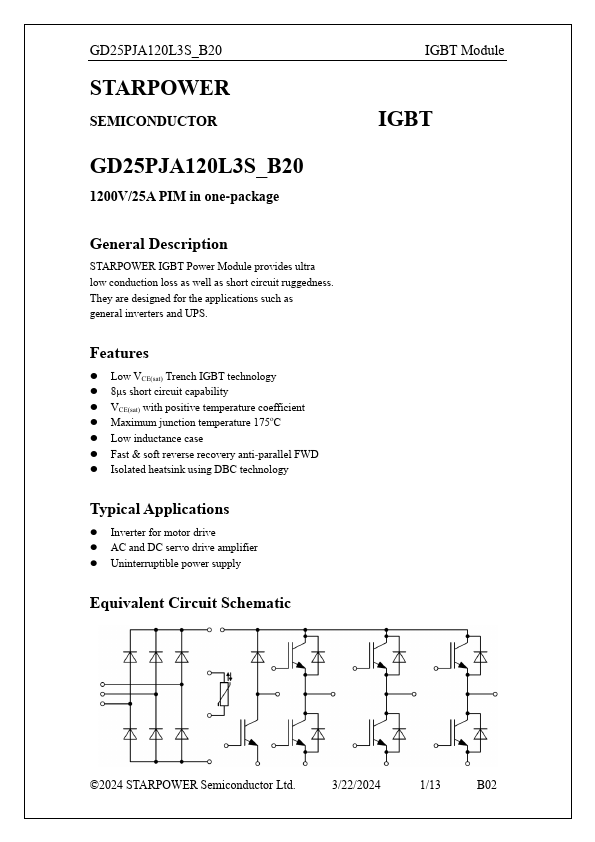

Preview of GD25PJA120L3S_B20 PDF

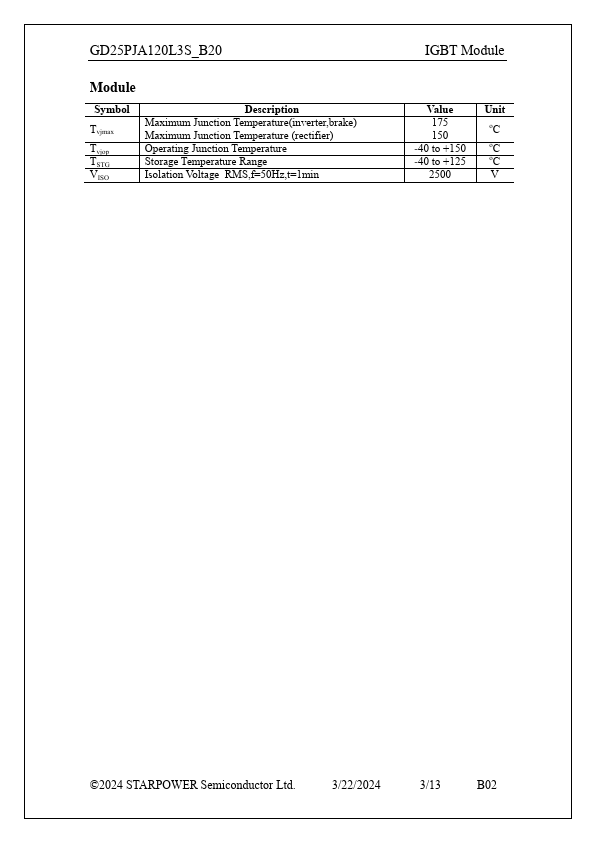

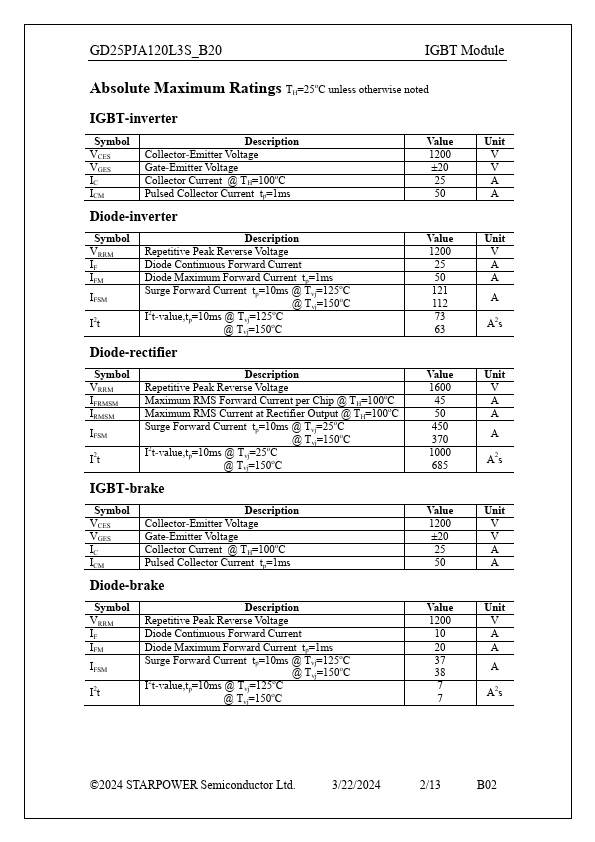

datasheet Preview Page 2 datasheet Preview Page 3
