GD300SGY120C2S - IGBT

STARPOWER

📥 Download Datasheet

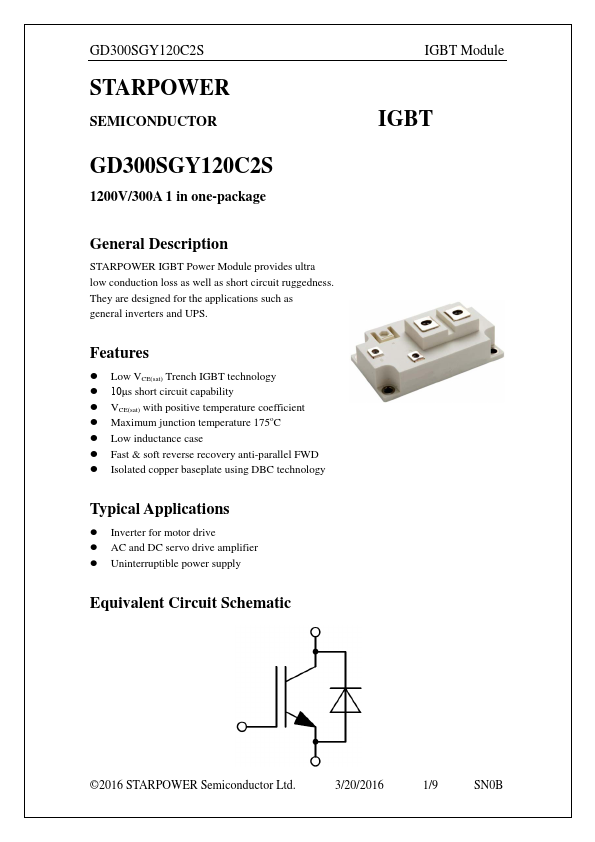

GD300SGY120C2S Datasheet Preview — Preview of GD300SGY120C2S PDF

datasheet Preview Page 2

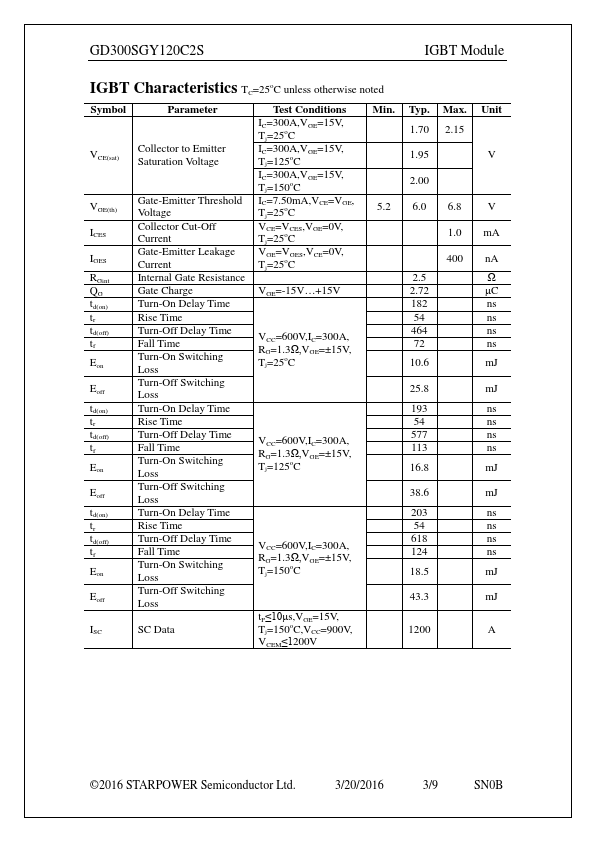

datasheet Preview Page 3

Datasheet Details

Part number	GD300SGY120C2S
Manufacturer	STARPOWER
File Size	216.66 KB
Description	IGBT
Datasheet	GD300SGY120C2S-STARPOWER.pdf

GD300SGY120C2S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
