GD50PIL120C6S - IGBT

STARPOWER

📥 Download Datasheet

GD50PIL120C6S Datasheet Preview — Preview of GD50PIL120C6S PDF

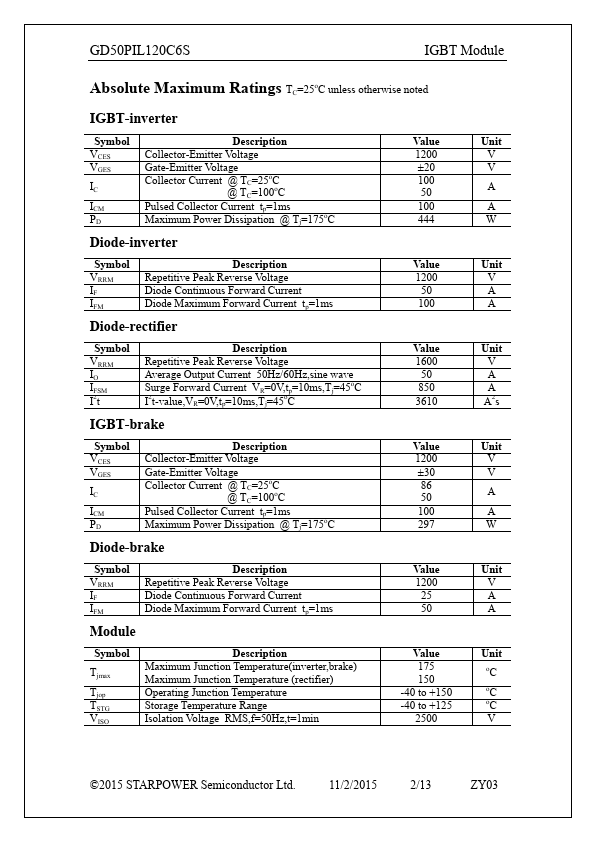

datasheet Preview Page 2

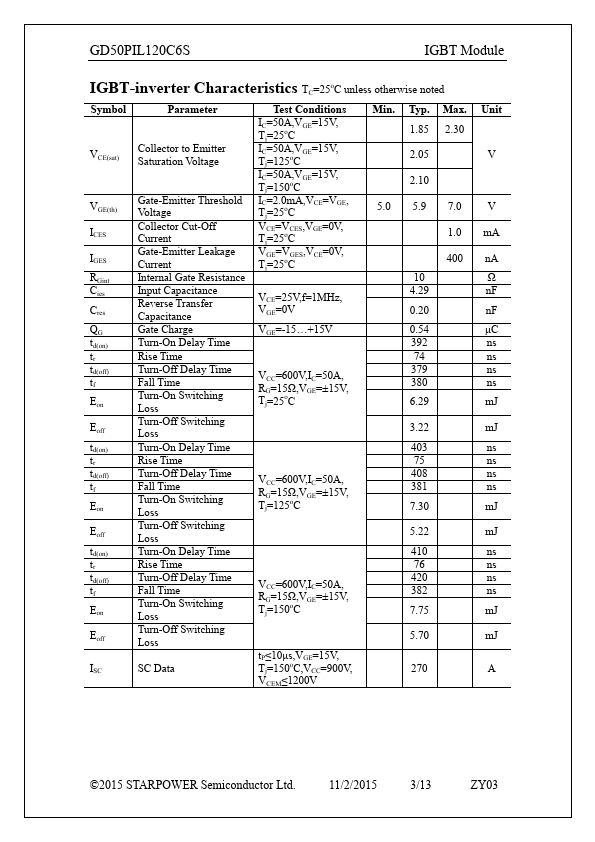

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIL120C6S
Manufacturer	STARPOWER
File Size	586.08 KB
Description	IGBT
Datasheet	GD50PIL120C6S-STARPOWER.pdf

GD50PIL120C6S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) SPT+ IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
