GD50PIX120C5SN - IGBT

STARPOWER

📥 Download Datasheet

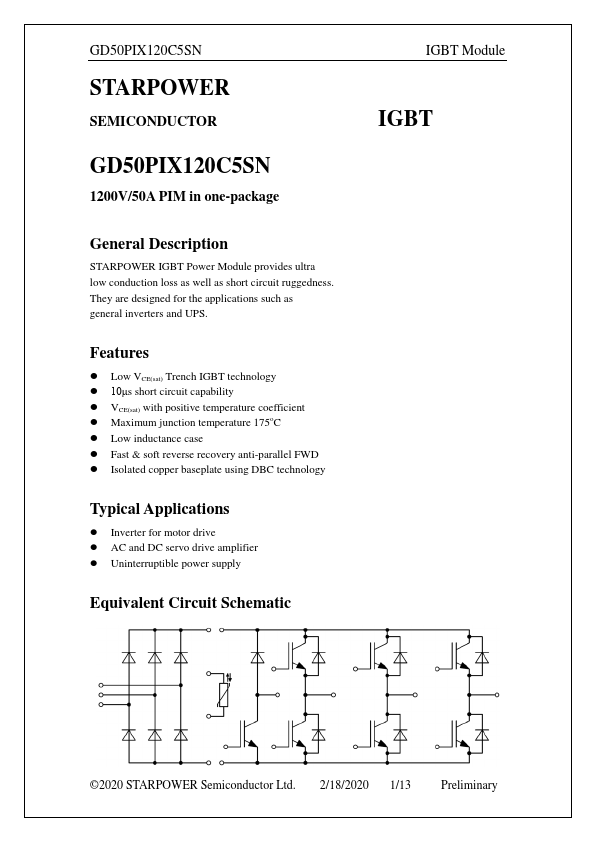

GD50PIX120C5SN Datasheet Preview — Preview of GD50PIX120C5SN PDF

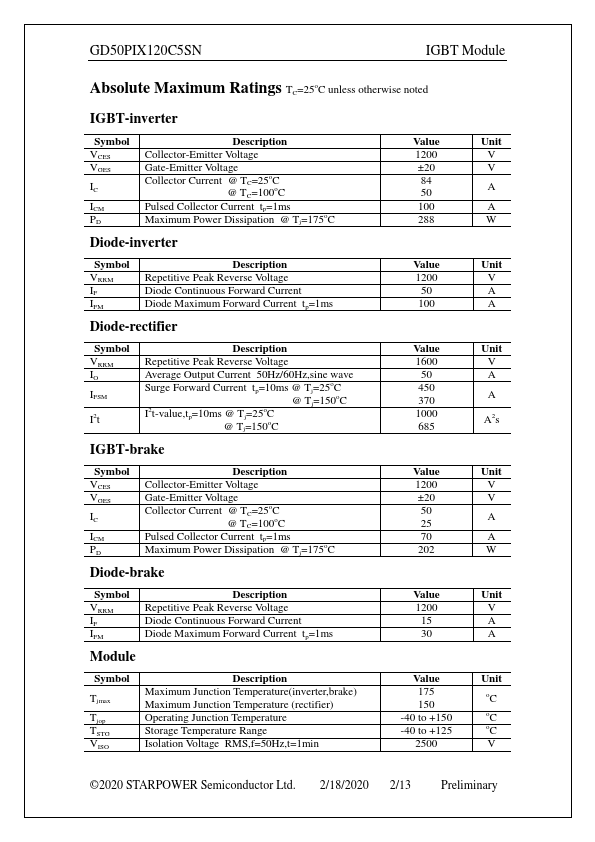

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIX120C5SN
Manufacturer	STARPOWER
File Size	286.14 KB
Description	IGBT
Datasheet	GD50PIX120C5SN-STARPOWER.pdf

GD50PIX120C5SN Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
