GD50PJA120L3S - IGBT

STARPOWER

📥 Download Datasheet

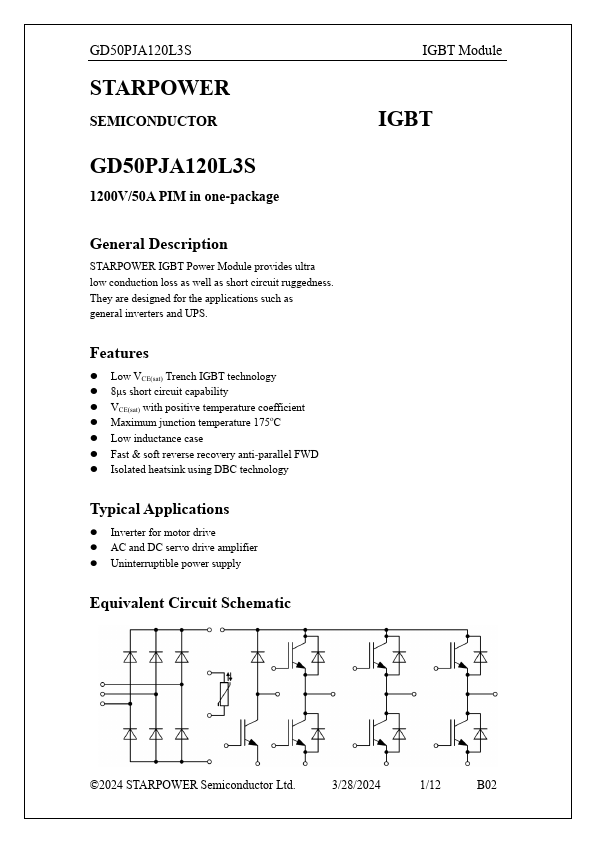

GD50PJA120L3S Datasheet Preview — Preview of GD50PJA120L3S PDF

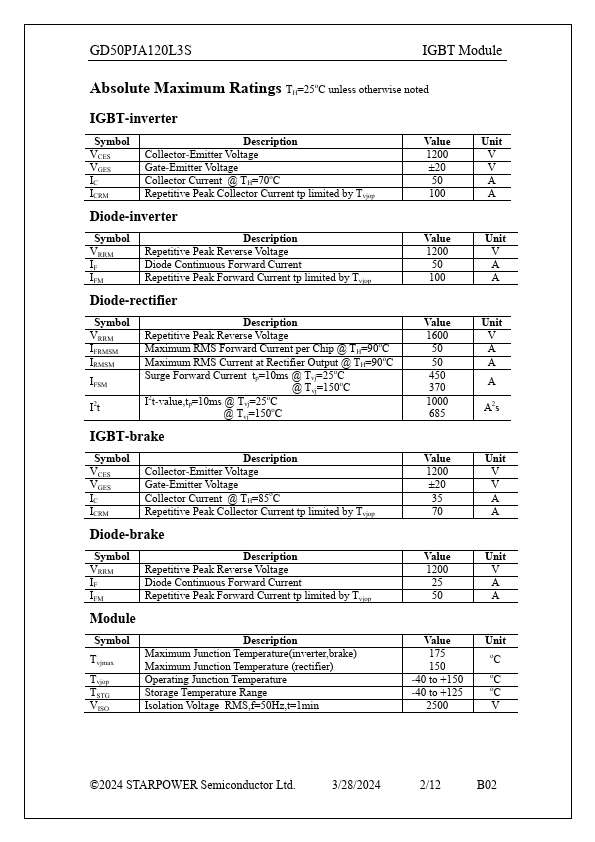

datasheet Preview Page 2

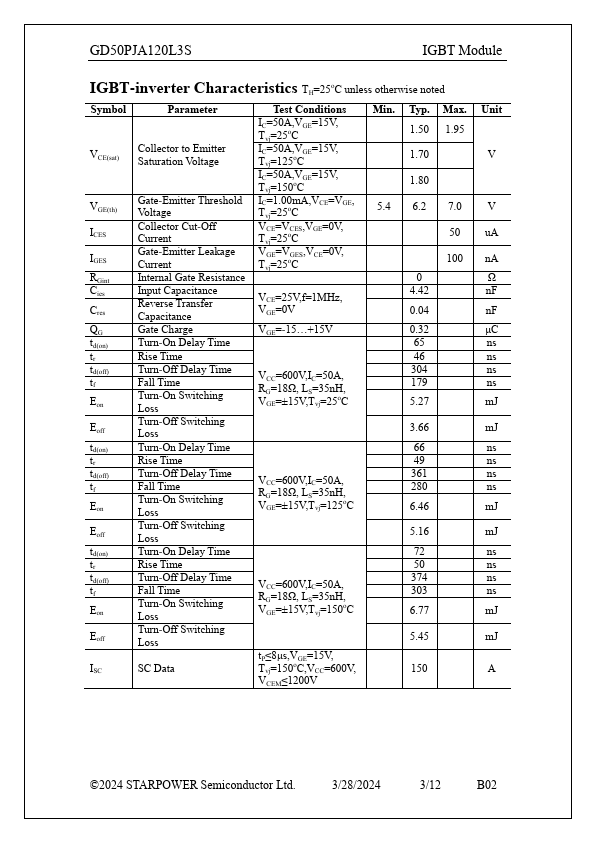

datasheet Preview Page 3

Datasheet Details

Part number	GD50PJA120L3S
Manufacturer	STARPOWER
File Size	656.47 KB
Description	IGBT
Datasheet	GD50PJA120L3S-STARPOWER.pdf

GD50PJA120L3S Product details

Features

Low VCE(sat) Trench IGBT technology.
8μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
