GD50PJX65L3SF - IGBT

STARPOWER

📥 Download Datasheet

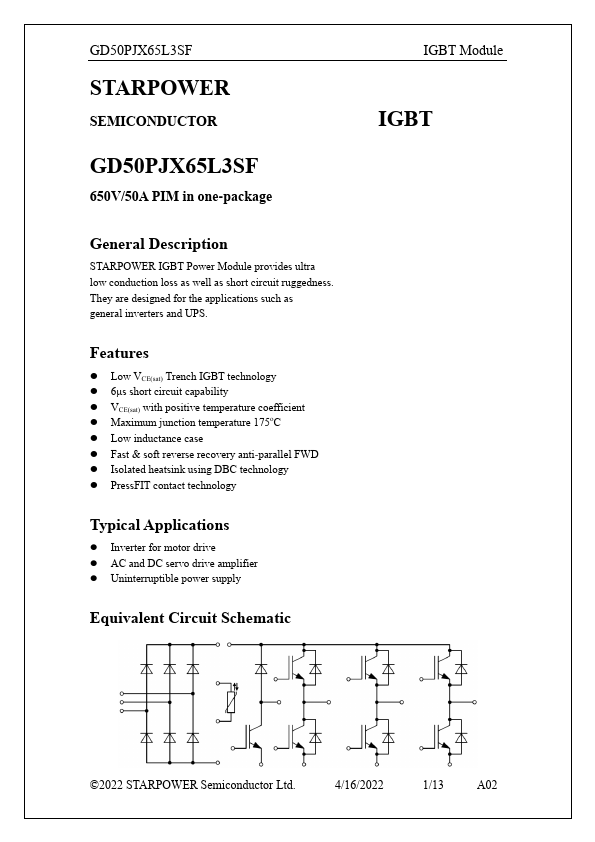

GD50PJX65L3SF Datasheet Preview — Preview of GD50PJX65L3SF PDF

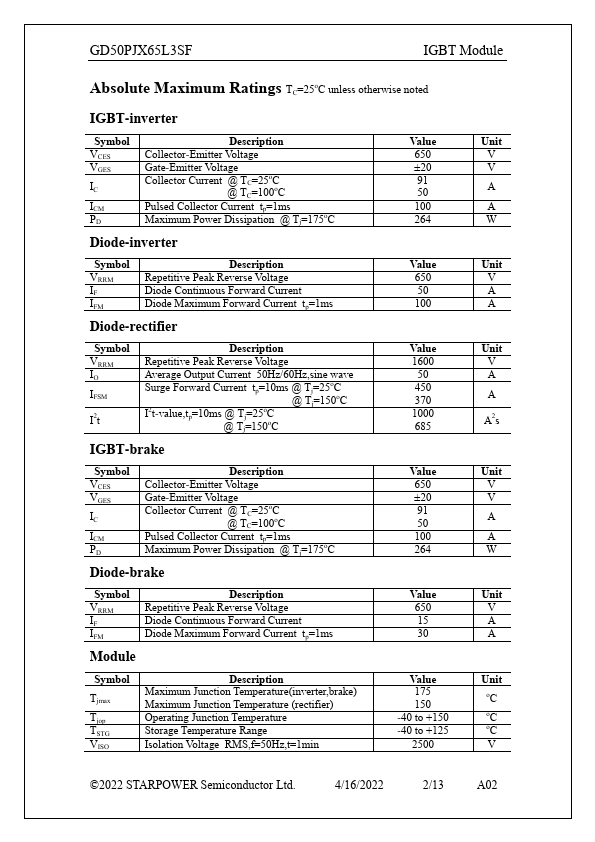

datasheet Preview Page 2

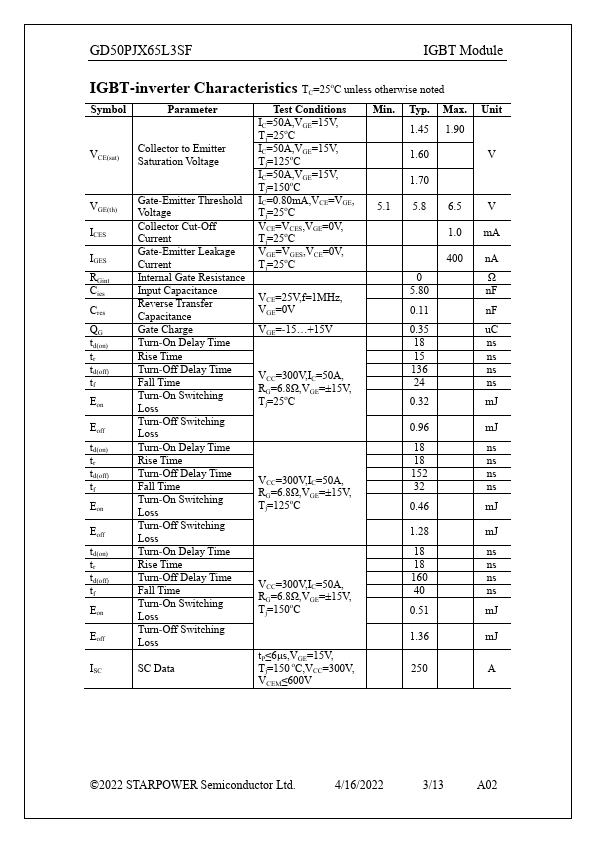

datasheet Preview Page 3

Datasheet Details

Part number	GD50PJX65L3SF
Manufacturer	STARPOWER
File Size	726.00 KB
Description	IGBT
Datasheet	GD50PJX65L3SF-STARPOWER.pdf

GD50PJX65L3SF Product details

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology.
PressFIT contact technology Typical.
