GD600HTA120P6H - IGBT

STARPOWER

📥 Download Datasheet

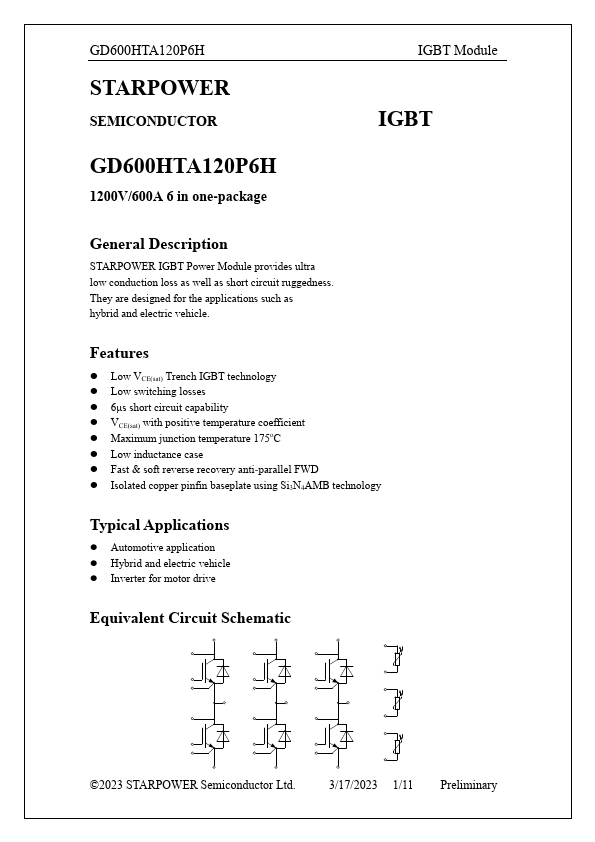

GD600HTA120P6H Datasheet Preview — Preview of GD600HTA120P6H PDF

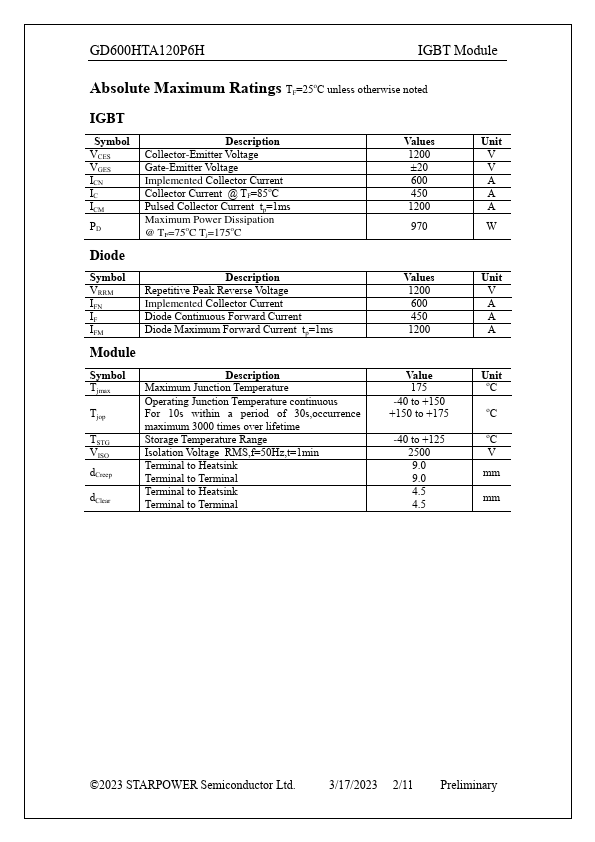

datasheet Preview Page 2

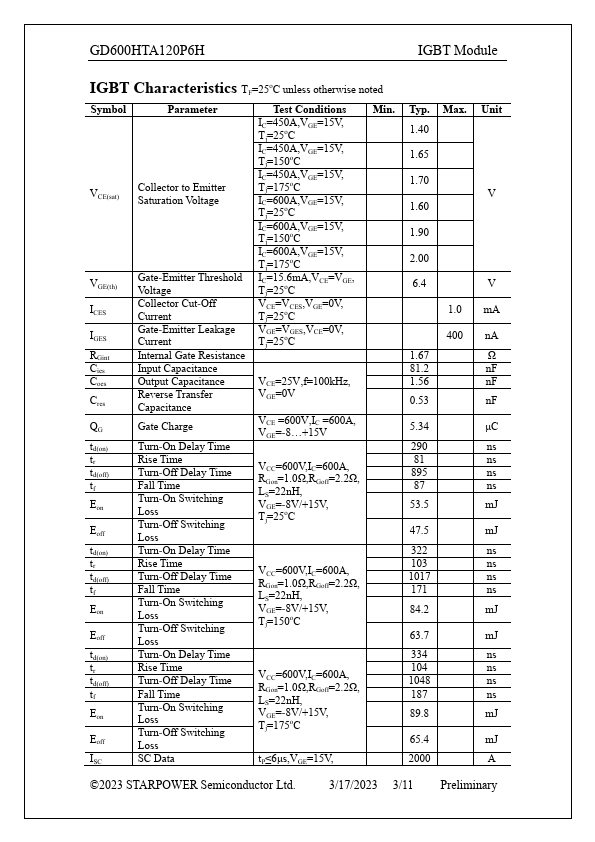

datasheet Preview Page 3

Datasheet Details

Part number	GD600HTA120P6H
Manufacturer	STARPOWER
File Size	799.72 KB
Description	IGBT
Datasheet	GD600HTA120P6H-STARPOWER.pdf

GD600HTA120P6H Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
Low switching losses.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper pinfin baseplate using Si3N4AMB technology Typical.
