GD600HTA120P6HL Datasheet - STARPOWER

GD600HTA120P6HL, IGBT

GD600HTA120P6HL STARPOWER SEMICONDUCTOR GD600HTA120P6HL 1200V/600A 6 in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

GD600HTA120P6HL-STARPOWER.pdf

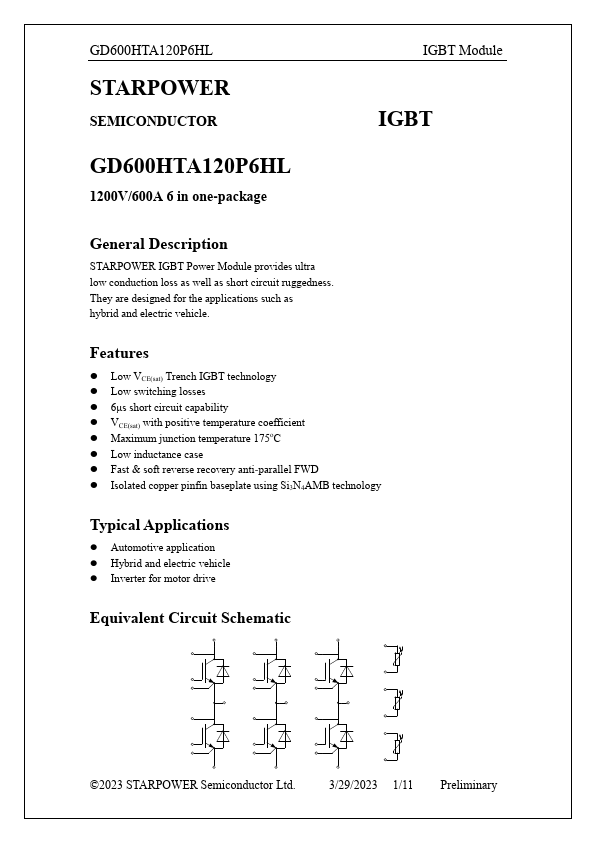

GD600HTA120P6HL Datasheet Preview — Preview of GD600HTA120P6HL PDF

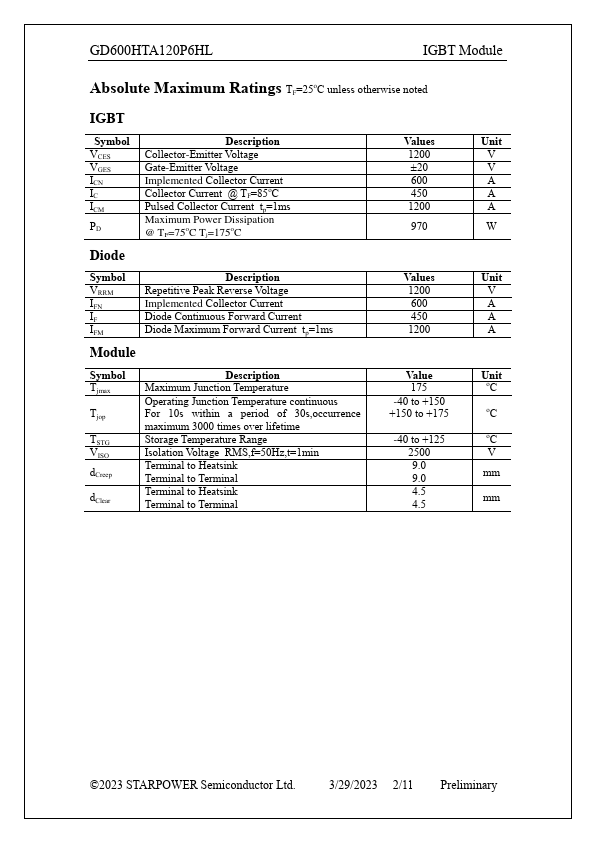

GD600HTA120P6HL Datasheet Preview Page 2

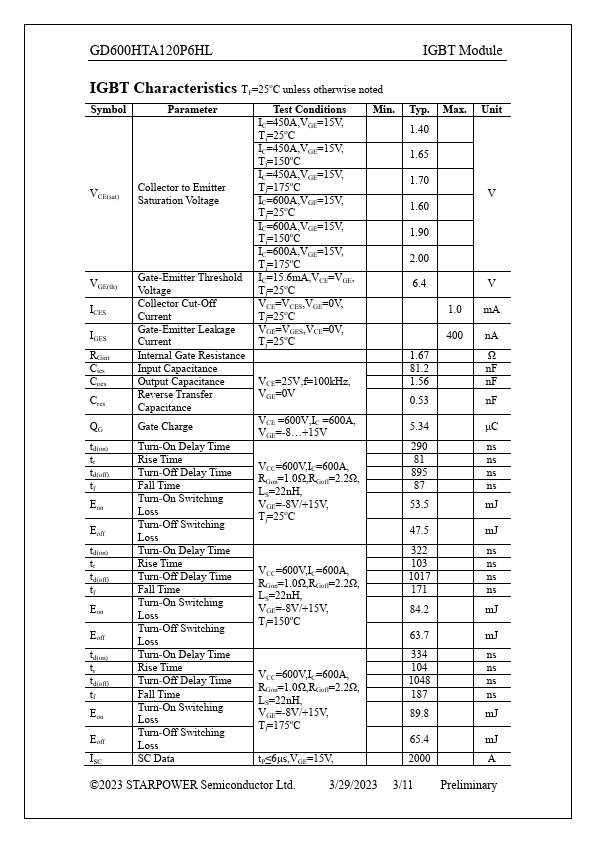

GD600HTA120P6HL Datasheet Preview Page 3

Datasheet Details

Part number:

GD600HTA120P6HL

Manufacturer:

STARPOWER

File Size:

903.13 KB

Description:

IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper p
