GD600HTX65P4S - IGBT

GD600HTX65P4S Description

GD600HTX65P4S STARPOWER SEMICONDUCTOR GD600HTX65P4S 650V/600A 6 in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

GD600HTX65P4S Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper pinfin baseplate using DBC technolog

📥 Download Datasheet

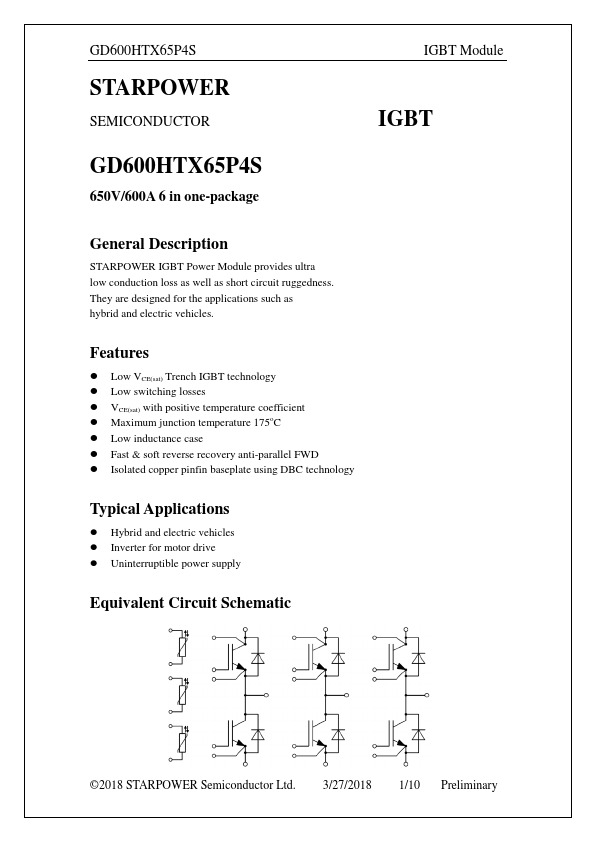

Preview of GD600HTX65P4S PDF

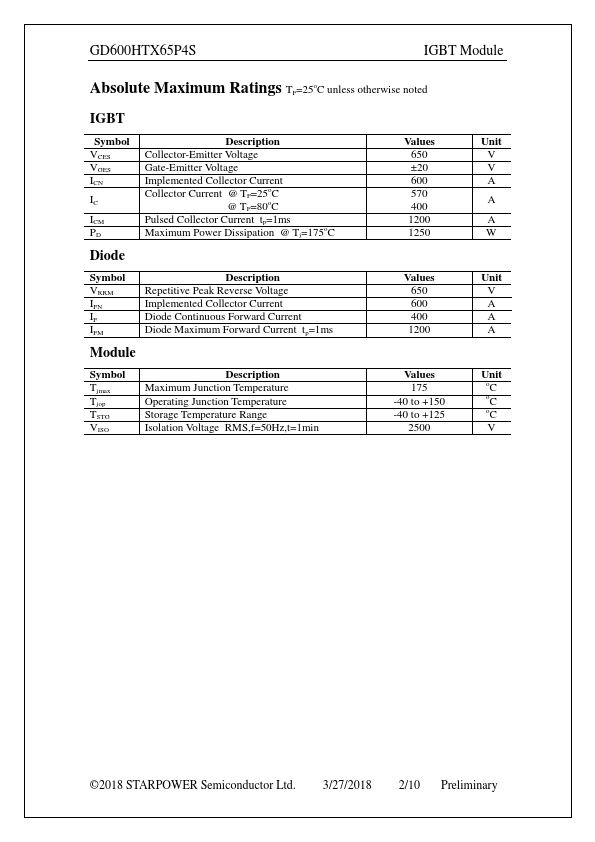

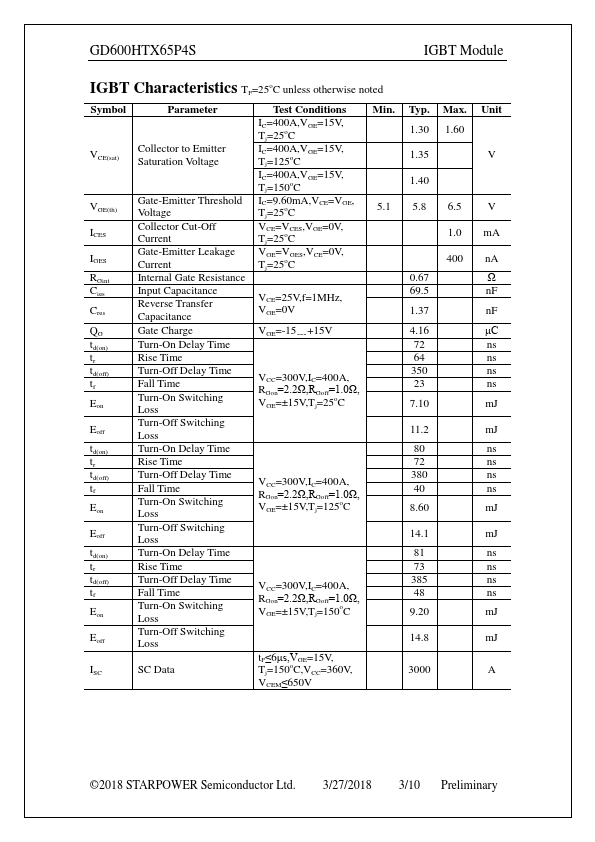

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GD600HTX65P4S
Manufacturer
STARPOWER
File Size
279.90 KB
Datasheet
GD600HTX65P4S-STARPOWER.pdf
Description
IGBT
