GD600HTX75P6H IGBT

STARPOWER

Description

GD600HTX75P6H STARPOWER SEMICONDUCTOR GD600HTX75P6H 750V/600A 6 in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

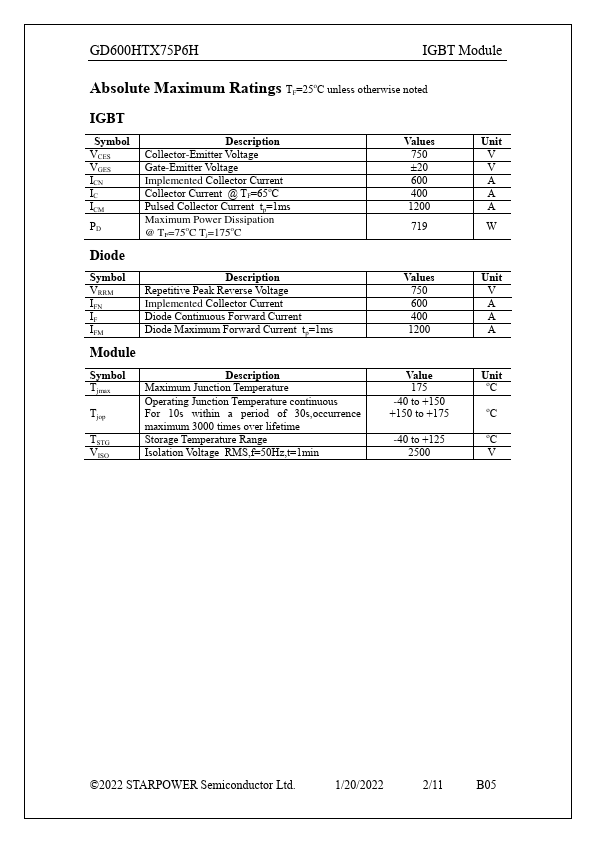

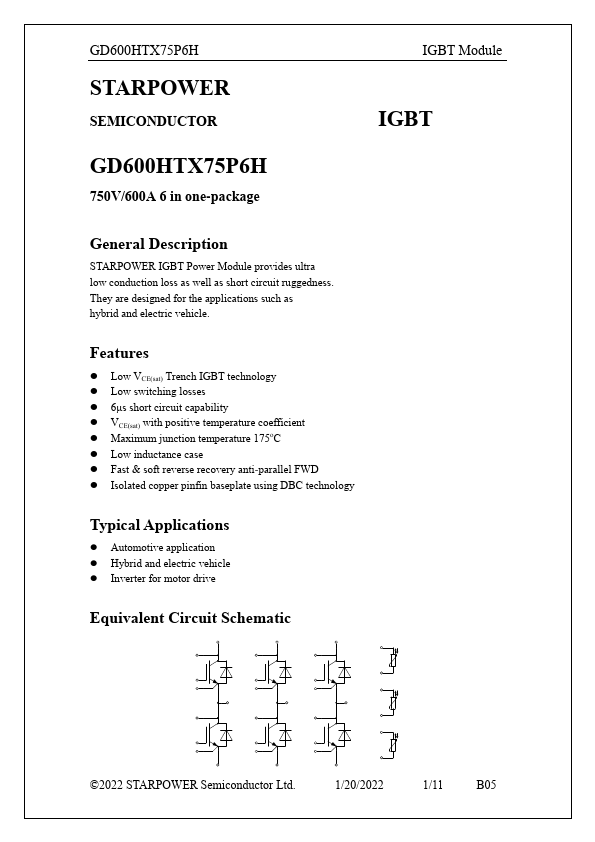

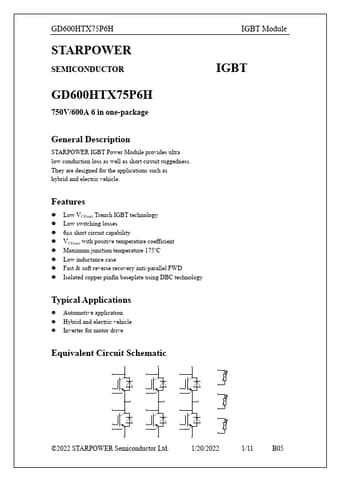

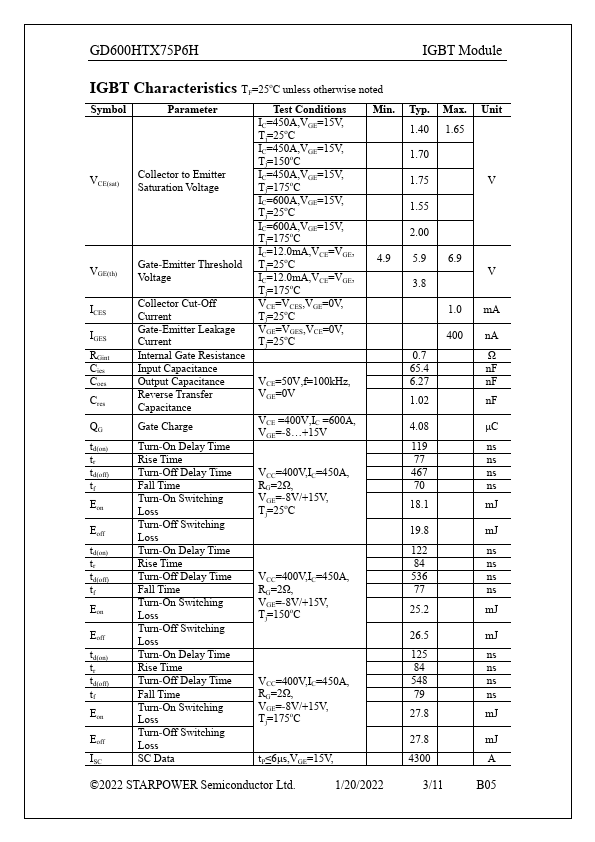

GD600HTX75P6H Datasheet Preview — Preview of GD600HTX75P6H PDF

Datasheet Specifications

Part number: GD600HTX75P6H
Manufacturer: STARPOWER
File Size: 642.09 KB
Datasheet: GD600HTX75P6H-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper p
