KD020C-2A - LCD

KD020C-2A Datasheet Preview — Preview of KD020C-2A PDF

Datasheet Details

Part number	KD020C-2A
Manufacturer	STARTEK
File Size	593.44 KB
Description	LCD
Datasheet	KD020C-2A-STARTEK.pdf

KD020C-2A Product details

Description

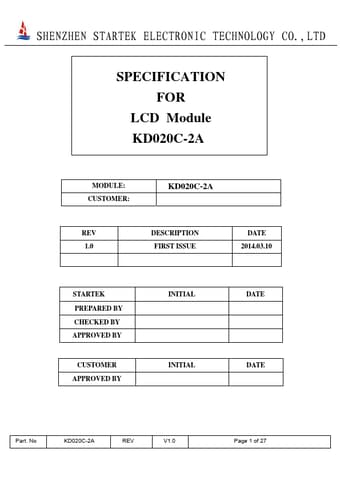

FIRST ISSUE DATE 2014.03.10 STARTEK PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No KD020C-2A REV V1.0 Page 1 of 27 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Revision History Data Rev.No.Page 2014.03.10 V1.0 ALL Summary FIRST ISSUE Part.No KD020C-2A REV V1.0 Page 2 of 27 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Contents General Description -----------------------------------------------------------------------4 1.Blo

Features

-Low Input Voltage: 3.3V(TYP) -Display Colors of TFT LCD: 65Kcolors - Interface: 8/9/16/18Bit MCU;3/4SPI+16/18Bit RGB General Information Items Display area(AA) Specification Main Panel 31.68(Ｈ).
39.6(Ｖ)(2.0inch) Driver element TFT active matrix Display colors 65K/262K Number of pixels 176(RGB).
220 Pixel arrangement RGB vertical stripe Pixel pitch 0.180(H).
0.180 (V) Viewing angle 12:00 Controller IC ST7775R Display mode Transmissive/ Normally White Operating temp.
