KD022C-2B - LCD

KD022C-2B Datasheet Preview — Preview of KD022C-2B PDF

Datasheet Details

Part number	KD022C-2B
Manufacturer	STARTEK
File Size	770.20 KB
Description	LCD
Datasheet	KD022C-2B-STARTEK.pdf

KD022C-2B Product details

Description

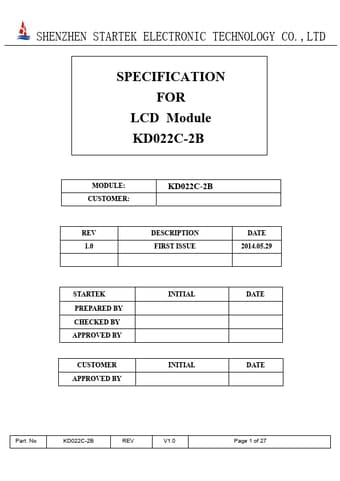

FIRST ISSUE DATE 2014.05.29 STARTEK PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No KD022C-2B REV V1.0 Page 1 of 27 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Revision History Data Rev.No.Page 2014.05.29 V1.0 ALL Summary FIRST ISSUE Part.No KD022C-2B REV V1.0 Page 2 of 27 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Contents General Description ------------------------------------------------------------------------------

Features

-Low Input Voltage: 3.3V(TYP) -Display Colors of TFT LCD: 65/262Kcolors -Interface:3-SPI+16/18 BIT RGB interface General Information Items Display area(AA) Specification Main Panel 33.48(Ｈ).
44.64(Ｖ) (2.2inch) Driver element TFT active matrix Display colors 262K Number of pixels 240(RGB).
320 Pixel arrangement RGB vertical stripe Pixel pitch 0.1395(H).
0.1395(V) Viewing angle 12:00 Controller IC ST7789V Display mode Operating temperature Storage temperature Transmis.
