Datasheet Details

Part number	KD022C-2C
Manufacturer	STARTEK
File Size	781.71 KB
Description	LCD
Datasheet	KD022C-2C-STARTEK.pdf

KD022C-2C Product details

Description

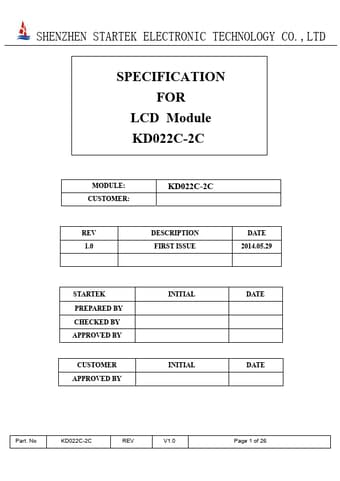

FIRST ISSUE DATE 2014.05.29 STARTEK PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No KD022C-2C REV V1.0 Page 1 of 26 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Revision History Data Rev.No.Page 2014.05.29 V1.0 ALL Summary FIRST ISSUE Part.No KD022C-2C REV V1.0 Page 2 of 26 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Contents General Description ------------------------------------------------------------------------------

Features

-Low Input Voltage: 3.3V(TYP) -Display Colors of TFT LCD: 65/262Kcolors -Interface: 4SPI+16/18 BIT RGB interface General Information Items Display area(AA) Specification Main Panel 33.48(Ｈ).
44.64(Ｖ) (2.2inch) Driver element TFT active matrix Display colors 65/262K Number of pixels 240(RGB).
320 Pixel arrangement RGB vertical stripe Pixel pitch 0.1395(H).
0.1395(V) Viewing angle 12:00 Controller IC ST7789V Display mode Operating temperature Storage temperature Trans.
