KD024FM-1 - LCD Module

KD024FM-1 Datasheet Preview — Preview of KD024FM-1 PDF

Datasheet Details

Part number	KD024FM-1
Manufacturer	STARTEK
File Size	1.02 MB
Description	LCD Module
Datasheet	KD024FM-1-STARTEK.pdf

KD024FM-1 Product details

Description

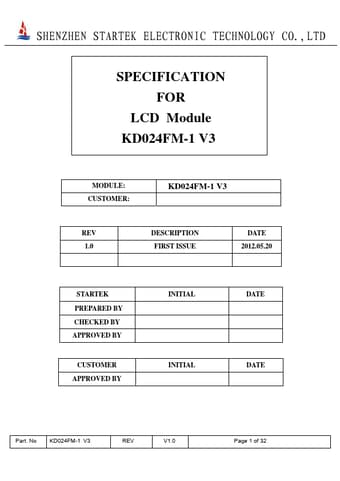

FIRST ISSUE DATE 2012.05.20 STARTEK PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No KD024FM-1 V3 REV V1.0 Page 1 of 32 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Revision History Data Rev.No.Page 2012.05.20 V1.0 ALL Summary FIRST ISSUE Part.No KD024FM-1 V3 REV V1.0 Page 2 of 32 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Contents General Description -----------------------------------------------------------------------4 1

Features

-Low Input Voltage: 3.3V(TYP) -Display Colors of TFT LCD: 65K/262Kcolors - Interface: 8/9/16/18Bit MCU;3/4SPI+16/18Bit RGB General Information Items Display area(AA) Specification Main Panel 36.72(Ｈ).
48.96(Ｖ) (2.4inch) Driver element TFT active matrix Display colors 65/262K Number of pixels 240(RGB).
320 Pixel arrangement RGB vertical stripe Pixel pitch 0.153(H).
0.153(V) Viewing angle ALL Controller IC ILI9341V Display mode Transmissive/ Normally Black Operating.
