CX9HT Datasheet - STATEK

HIGH TEMPERATURE CRYSTALS

CX9HT Features

* High temperature operation up to 225 OC High shock resistance Hermetically sealed ceramic package DIMENSIONS CX1HT MAXIMUM APPLICATIONS DIM A B C (SM1) C (SM5) D E F PACKAGE DIMENSIONS CX1HT CX4HT inches 0.330 0.155 0.070 0.075 0.055 0.070 0.070 mm 8.38 3.94 1.78 1.90 1.40 1.78 1.78 CX4HT MAXIMU

CX9HT General Description

An increasing number of applications require the use of high-temperature crystals. For these applications, Statek offers the CX1 HT, CX4 HT, and CX9 HT crystals. These crystals are designed to operate at temperatures up to and including 225ºC. The frequency range offered is 6 MHz to 250 MHz for CX1.

CX9HT Datasheet (299.95 KB)

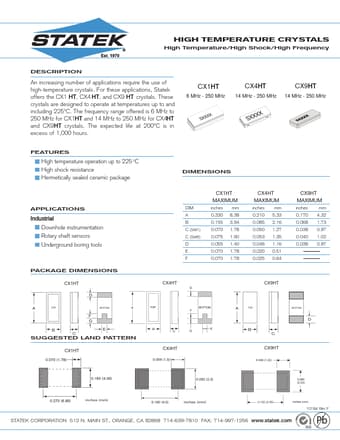

Preview of CX9HT PDF

Datasheet Details

Part number:

CX9HT

Manufacturer:

STATEK

File Size:

299.95 KB

Description:

High temperature crystals.
