CX95516 - (CX95516 / CX95524) ADSL

Conexant Systems

📥 Download Datasheet

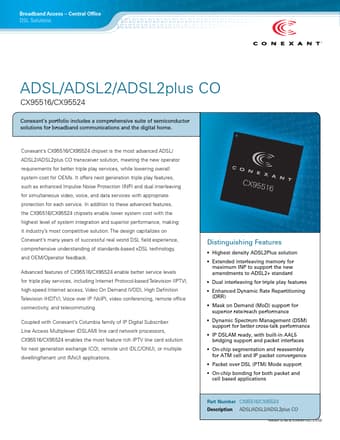

CX95516 Datasheet Preview — Preview of CX95516 PDF

Datasheet Details

Part number	CX95516
Manufacturer	Conexant Systems
File Size	175.01 KB
Description	(CX95516 / CX95524) ADSL
Datasheet	CX95516_ConexantSystems.pdf

CX95516 Product details

Description

ADSL/ADSL2/ADSL2plus CO www.DataSheet4U.com Broadband Access Central Office DSL Solutions The CX95516 and CX95524 chipsets support 16 and 24 channels of ADSL2/ADSL2/ADSL2plus, respectively.The CX99516 chipset includes a 16-port DSP and two Analog Front-End (AFE) chips.The DSP is packaged in a 472-pin Plastic Ball Grid Array (PBGA), and the AFE is packaged in a 144-pin Low-profile, Fine Pitch Ball Grid Array (LFBGA).The CX95524 chipset includes a DSP in a 24-port configuration a

Features

such as enhanced Impulse Noise Protection (INP) and dual interleaving for simultaneous video, voice, and data services with appropriate protection for each service. In addition to these advanced features, the CX95516/CX95524 chipsets enable lower system cost with the highest level of system integration and superior performance, making it industry’s most competitive solution. The design capitalizes on Conexant’s many years of successful real world DSL field experience, comprehensive understandin.
