CX95524, CX95516 - (CX95516 / CX95524) ADSL

Conexant Systems

The CX95524 by Conexant Systems is a (CX95516 / CX95524) ADSL. Below is the official datasheet preview.

📥 Download Datasheet

CX95524 (CX95516 / CX95524) ADSL by Conexant Systems - Datasheet Preview — Official preview page of the **CX95524** (CX95516 / CX95524) ADSL datasheet (Conexant Systems).

Datasheet Details

Part number	CX95524, CX95516
Manufacturer	Conexant Systems
File Size	175.01 KB
Description	(CX95516 / CX95524) ADSL
Datasheet	CX95516_ConexantSystems.pdf
Note	This datasheet PDF includes multiple part numbers: CX95524, CX95516. Please refer to the document for exact specifications by model.

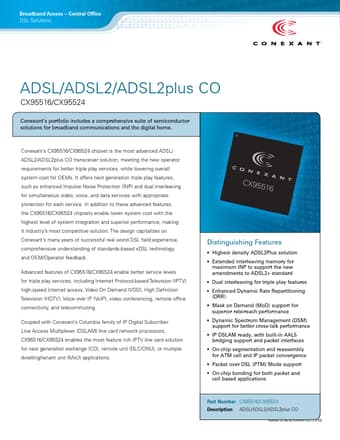

Additional preview pages of the CX95524 datasheet.

CX95524 Product details

Description

ADSL/ADSL2/ADSL2plus CO www.DataSheet4U.com Broadband Access Central Office DSL Solutions The CX95516 and CX95524 chipsets support 16 and 24 channels of ADSL2/ADSL2/ADSL2plus, respectively.The CX99516 chipset includes a 16-port DSP and two Analog Front-End (AFE) chips.The DSP is packaged in a 472-pin Plastic Ball Grid Array (PBGA), and the AFE is packaged in a 144-pin Low-profile, Fine Pitch Ball Grid Array (LFBGA).The CX95524 chipset includes a DSP in a 24-port configuration a

Features

such as enhanced Impulse Noise Protection (INP) and dual interleaving for simultaneous video, voice, and data services with appropriate protection for each service. In addition to these advanced features, the CX95516/CX95524 chipsets enable lower system cost with the highest level of system integration and superior performance, making it industry’s most competitive solution. The design capitalizes on Conexant’s many years of successful real world DSL field experience, comprehensive understandin.
