Part number:
CX9VHT
Manufacturer:
STATEK
File Size:
332.75 KB
Description:
High temperature crystals.

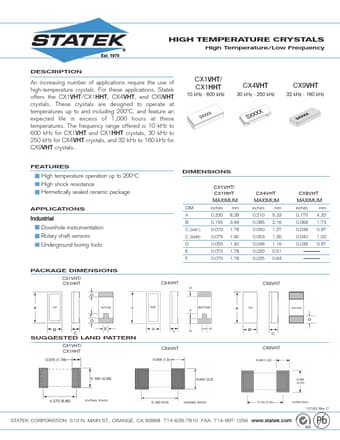

* CX1VHT/ CX1HHT 10 kHz - 600 kHz CX4VHT 30 kHz - 250 kHz CX9VHT 32 kHz - 160 kHz High temperature operation up to 200OC High shock resistance Hermetically sealed ceramic package APPLICATIONS DIMENSIONS CX1VHT/ CX1HHT MAXIMUM DIM A B C (SM1) C (SM5) D E F inches 0.330 0.155 0.070 0.075 0.055 0.0
CX9VHT
STATEK
332.75 KB
High temperature crystals.
