CX9VSM

Low Profile Surface Mount Quartz Crysta

CX9VSM Features

* Glass Lid Ceramic Lid PACKAGE DIMENSIONS Ultra-miniature, surface mount design (4.1mm x 1.5mm) Low profile (typically 0.80mm) Available with glass or ceramic lid Hermetically sealed ceramic package High shock and vibration survival Excellent aging characteristics Designed for low power application

CX9VSM General Description

Designed and manufactured in the USA, the CX9V quartz crystal is available in frequencies from 32 kHz to 250 kHz. Using micro-machining processes, this surface-mountable crystal is hermetically sealed within a ultra-miniature ceramic package to ensure high stability and low aging. Tight calibration.

CX9VSM Datasheet (208.17 KB)

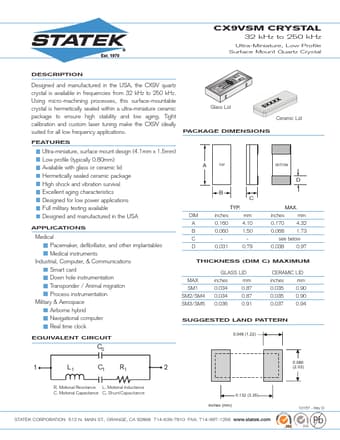

Preview of CX9VSM PDF

Datasheet Details

Part number:

CX9VSM

Manufacturer:

STATEK

File Size:

208.17 KB

Description:

Low profile surface mount quartz crysta.
