13009 Datasheet - STMicroelectronics

13009 - NPN power transistor

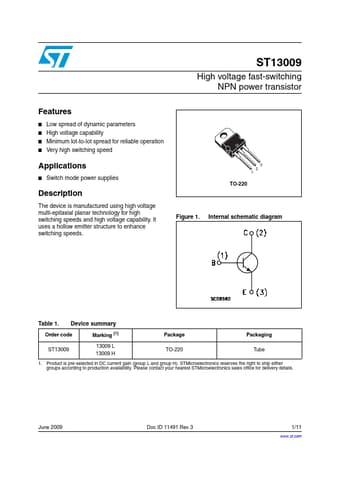

The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and high voltage capability. It uses a hollow emitter structure to enhance switching speeds. 3 2 1 TO-220 Figure 1. Internal schematic diagram Table 1. Device summary Order code Marking (1) .

13009-STMicroelectronics.pdf

13009 Datasheet Preview — Preview of 13009 PDF

Datasheet Details

Part number:

13009

Manufacturer:

STMicroelectronics ↗

File Size:

161.76 KB

Description:

Npn power transistor.
