ACS302-5T3

THREE LINES AC SWITCH ARRAY

ACS302-5T3 Features

* s s s s s s THREE HIGH VOLTAGE AC SWITCH ARRAY BLOCKING VOLTAGE: VDRM / VRRM = 500V CLAMPING VOLTAGE: VCL = 600 V NOMINAL CONDUCTING CURRENT PER LINE: IT(RMS) = 0.2 A NOMINAL CONDUCTING CURRENT FOR TOTAL ARRAY: IT(RMS) = 0.4 A GATE TRIGGERING CURRENT: IGT < 5 mA SO-20 Wired package PIN-OUT 1

ACS302-5T3 General Description

The ACS302 belongs to the AC line switch family built around the ASD™ concept. This high performance device inludes 3 bidirectionnal AC switches able to control an 0.2A resistive or inductive load device. Each ACS™ switch embeds a high voltage clamping structure to absorb the inductive turn off ener.

ACS302-5T3 Datasheet (120.76 KB)

Preview of ACS302-5T3 PDF

Datasheet Details

Part number:

ACS302-5T3

Manufacturer:

STMicroelectronics ↗

File Size:

120.76 KB

Description:

Three lines ac switch array.

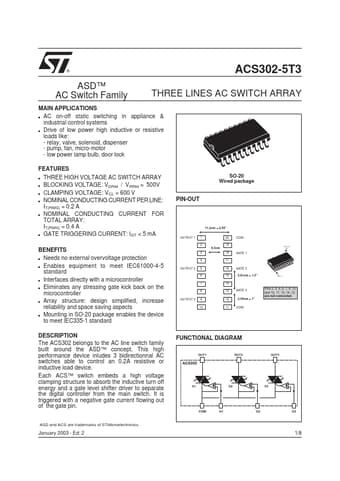

® ACS302-5T3 THREE LINES AC SWITCH ARRAY ASD™ AC Switch Family s MAIN APPLICATIONS AC on-off static switching in appliance & industrial control sys.
