B80NF55-06 Datasheet, Mosfet, STMicroelectronics

B80NF55-06 Features

  • Mosfet Type STB80NF55-06 STB80NF55-06-1 STP80NF55-06 STP80NF55-06FP VDSS 55V 55V 55V 55V RDS(on) <0.0065Ω <0.0065Ω <0.0065Ω <0.0065Ω ID 80A (1) 80A(1) 80A (1) 60A (1) 1. Limited by packag

PDF File Details

Part number:

B80NF55-06

Manufacturer:

STMicroelectronics ↗

File Size:

423.85kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting tra

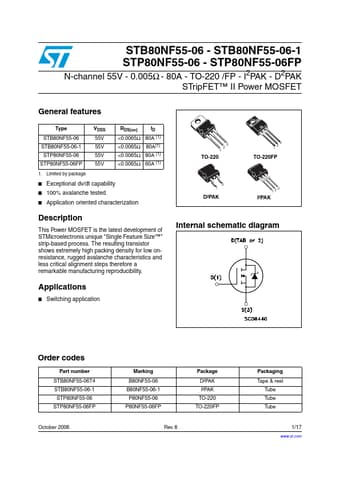

Datasheet Preview: B80NF55-06 📥 Download PDF (423.85kb)
Page 2 of B80NF55-06 Page 3 of B80NF55-06

B80NF55-06 Application

  • Applications
  • Switching application 3 2 1 TO-220 3 2 1 TO-220FP 3 1 D²PAK 123 I²PAK Internal schematic diagram Order codes Part numbe
