B80NF55-06T

N-CHANNEL POWER MOSFET

B80NF55-06T Features

* Type STB80NF55-06T VDSS 55 V RDS(on) max. 6.5 mΩ ID 80 A

* AEC-Q101 qualified

* Exceptional dv/dt capability

* 100% avalanche tested

* Low gate charge Applications

* Switching applications Description This Power MOSFET series has been developed using STMic

B80NF55-06T General Description

This Power MOSFET series has been developed using STMicroelectronics' unique STripFET™ process, which is specifically designed to minimize input capacitance and gate charge. This renders the device suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom a.

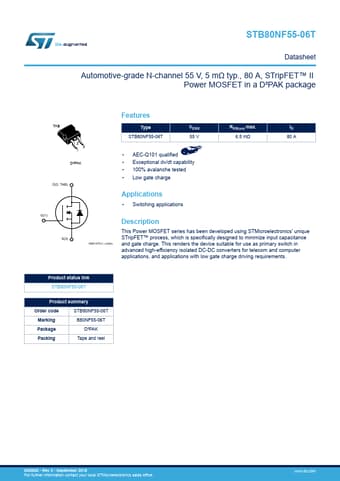

B80NF55-06T Datasheet (561.15 KB)

Preview of B80NF55-06T PDF

Datasheet Details

Part number:

B80NF55-06T

Manufacturer:

STMicroelectronics ↗

File Size:

561.15 KB

Description:

N-channel power mosfet.
STB80NF55-06T Datasheet Automotive-grade N-channel 55 V, 5 mΩ typ., 80 A, STripFET™ II Power MOSFET in a D²PAK package TAB 2 3 1 D²PAK D(2, TAB) G(1.
