BYW77 - HIGH EFFICIENCY FAST RECOVERY DIODES

Datasheet Summary

Description

Single rectifier suited for switchmode power supply and high frequency DC to DC converters.

Packaged in D2PAK, this surface mount device is intended for use in high frequency inverters, free wheeling and polarity protection applications.

Features

  • 1 3 VERY SMALL.

📥 Download Datasheet

Datasheet preview – BYW77

Datasheet Details

Part number BYW77
Manufacturer STMicroelectronics
File Size 66.25 KB
Description HIGH EFFICIENCY FAST RECOVERY DIODES
Datasheet download datasheet BYW77 Datasheet
Additional preview pages of the BYW77 datasheet.

📁 Similar Datasheet

  • BYW77-100 - RECTIFIERS (Microsemi Corporation)
  • BYW77-150 - RECTIFIERS (Microsemi Corporation)
  • BYW77-50 - RECTIFIERS (Microsemi Corporation)
  • BYW72 - Fast Silicon Mesa Rectifiers (Vishay Telefunken)
  • BYW72 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
  • BYW72GP - SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER (Gulf Semiconductor)
  • BYW73 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
  • BYW73 - Fast Silicon Mesa Rectifiers (Vishay Telefunken)
  • BYW73GP - SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER (Gulf Semiconductor)
  • BYW74 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
Other Datasheets by STMicroelectronics
  • BYW77 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77G-200 - HIGH EFFICIENCY FAST RECOVERY DIODES
  • BYW77G200 - HIGH EFFICIENCY FAST RECOVERY DIODES
  • BYW77P - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77P-200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77P200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77PI - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77PI-200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

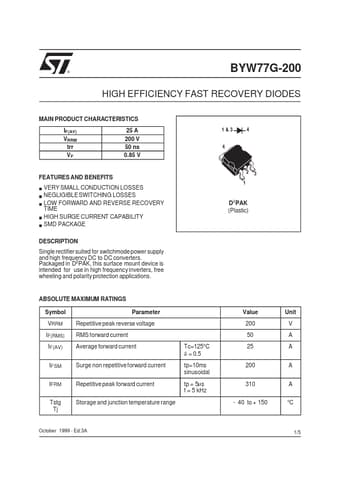

® BYW77G-200 HIGH EFFICIENCY FAST RECOVERY DIODES MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr VF 25 A 200 V 50 ns 0.85 V 1&3 4 4 2 FEATURES AND BENEFITS 1 3 VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES LOW FORWARD AND REVERSE RECOVERY TIME HIGH SURGE CURRENT CAPABILITY SMD PACKAGE DESCRIPTION Single rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in D2PAK, this surface mount device is intended for use in high frequency inverters, free wheeling and polarity protection applications.
