BYW77P

HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES

BYW77P Features

* SUITED FOR SMPS VERY LOW FORWARD LOSSES NEGLIGIBLE SWITCHING LOSSES HIGH SURGE CURRENT CAPABILITY HIGH AVALANCHE ENERGY CAPABILITY INSULATED VERSION : Insulating voltage = 2500 V DC Capacitance = 12 pF A K DESCRIPTION Single chip rectifier suited for switchmode power supply and high frequency DC to

BYW77P General Description

Single chip rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in SOD93, or DOP3I this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. SOD93 (Plastic) BYW77P-200 isolated DOP3I (Plasti.

BYW77P Datasheet (68.07 KB)

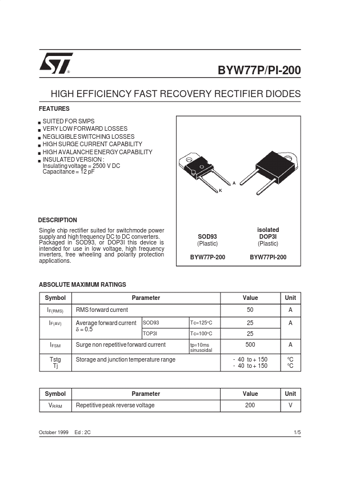

Preview of BYW77P PDF

Datasheet Details

Part number:

BYW77P

Manufacturer:

STMicroelectronics ↗

File Size:

68.07 KB

Description:

High efficiency fast recovery rectifier diodes.
