BYW77P200

HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES

BYW77P200 Features

* SUITED FOR SMPS VERY LOW FORWARD LOSSES NEGLIGIBLE SWITCHING LOSSES HIGH SURGE CURRENT CAPABILITY HIGH AVALANCHE ENERGY CAPABILITY INSULATED VERSION : Insulating voltage = 2500 V DC Capacitance = 12 pF A K DESCRIPTION Single chip rectifier suited for switchmode power supply and high frequency DC to

BYW77P200 General Description

Single chip rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in SOD93, or DOP3I this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. SOD93 (Plastic) BYW77P-200 isolated DOP3I (Plasti.

BYW77P200 Datasheet (68.07 KB)

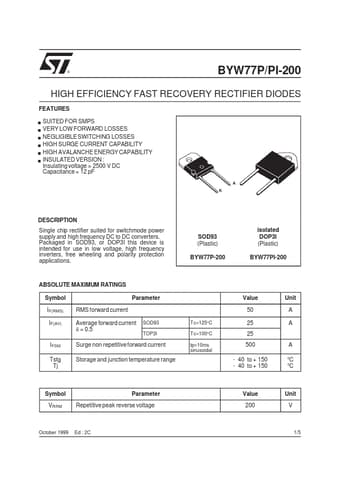

Preview of BYW77P200 PDF

Datasheet Details

Part number:

BYW77P200

Manufacturer:

STMicroelectronics ↗

File Size:

68.07 KB

Description:

High efficiency fast recovery rectifier diodes.
